At its core, the operation of a self-loading concrete mixer is a sequential process that transforms raw materials into ready-to-use concrete directly on-site. The primary steps involve positioning the machine, using the hydraulic bucket to load aggregates and cement, introducing a measured amount of water, mixing the components within the rotating drum, and finally, discharging the finished concrete where it is needed.
A self-loading mixer is best understood not as a simple truck, but as a complete, mobile batching plant. Mastering its operation means moving beyond the sequence of controls to a mindset of precision—ensuring every batch is consistent, from accurate material weighing to controlled final placement.
The Three Pillars of Operation: A Systematic Approach
Thinking about the process in three distinct phases ensures safety, efficiency, and equipment longevity. These are the pre-operation checks, the core operational workflow, and the essential post-operation procedures.
This structured approach prevents common errors and guarantees a higher quality of concrete.
Phase 1: Pre-Operation and Setup
Before any materials are loaded, proper preparation is the foundation for a successful and safe operation. This phase is non-negotiable.
Verify Machine Stability
The first step is to position the mixer on stable, level ground. This is critical for both safety and the accuracy of the built-in weighing system.
Positioning the machine close to the material piles minimizes travel time for the loading bucket, increasing overall efficiency.
Conduct Essential Inspections
A brief walk-around is necessary to check fluid levels, tire pressure, and the general condition of the hydraulic systems. Ensure all safety guards are in place and the operator's cabin provides clear visibility.
Phase 2: The Core Operational Workflow
This is the active process of producing the concrete, moving sequentially from raw materials to the final product. All functions are typically managed from the operator's cabin.
Step 1: Accurate Material Loading

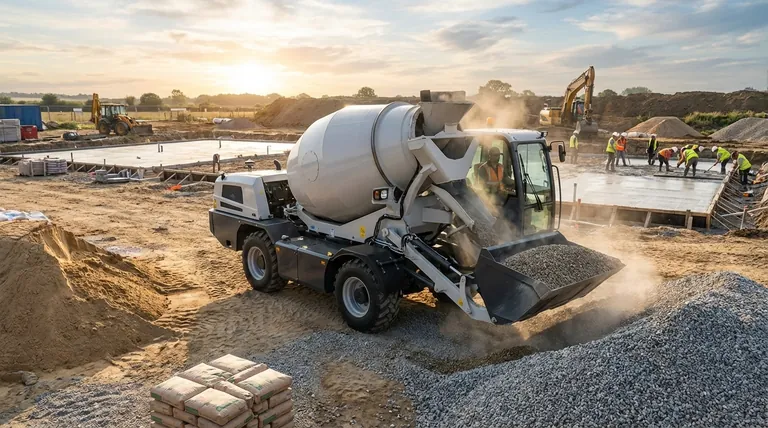

The operator uses the front hydraulic loading bucket to scoop the raw materials—typically sand, gravel, and cement.
The integrated weighing system is crucial here. The operator loads each material to the precise weight required by the mix design, ensuring batch consistency.
Step 2: Precise Water Addition
Once the dry materials are in the drum, water is added. The operator activates the water pump, which draws from onboard tanks.
A sophisticated dosing system or flow meter allows for the exact amount of water to be introduced, which is vital for achieving the desired concrete slump and strength.
Step 3: Homogeneous Mixing
With all materials loaded, the mixing drum is activated. A control lever or button initiates the rotation.
The internal blades inside the drum lift and fold the materials, ensuring they are mixed thoroughly into a homogeneous concrete mixture. The mixing time will vary based on the specific mix design but is typically a matter of minutes.
Step 4: Transportation and Agitation
The mixer can now transport the concrete to the pour site. During transit, the drum continues to rotate at a slow speed.
This constant, gentle agitation prevents the concrete from segregating or beginning to set before it can be discharged.
Step 5: Controlled Discharging
Upon arrival at the pour location, the operator reverses the drum's rotation. This action engages the spiral blades in a way that pushes the concrete out.
The adjustable discharge chute can be swiveled and tilted to guide the concrete precisely into forms, trenches, or wheelbarrows, minimizing waste and labor.
Common Pitfalls to Avoid
Understanding the machine's capabilities also means understanding its limitations and the common mistakes that can compromise a project.
The Risk of Improper Proportioning
Relying on guesswork instead of the built-in weighing system is the most common cause of poor-quality concrete. An incorrect water-to-cement ratio directly compromises the final strength and durability of the slab.
The Danger of Unstable Ground
Operating on soft or uneven surfaces can lead to machine instability, especially when the loading bucket is raised and full. It also throws off the weighing system, leading to inaccurate batches.
The Cost of Inadequate Cleaning
Concrete begins to harden quickly. Failing to thoroughly wash out the drum and discharge chute after use allows hardened material to build up, which reduces drum capacity and can cause significant damage over time.
Optimizing Your Workflow for Specific Goals
How you approach the operational process depends on your primary objective for the task at hand.
- If your primary focus is quality and consistency: Master the use of the electronic weighing and water dosing systems to ensure every batch meets the exact mix design specifications.
- If your primary focus is speed and efficiency: Plan your site layout carefully, placing material stockpiles strategically to minimize the machine's travel and loading time.
- If your primary focus is safety and machine longevity: Never skip the pre-operation checks and make post-operation cleaning a mandatory final step for every single use.
By viewing the self-loading mixer as an integrated system, you can produce high-quality concrete efficiently and safely on any job site.
Summary Table:
| Phase | Key Steps | Purpose |
|---|---|---|
| 1. Pre-Operation | Position on stable ground, inspect machine | Ensure safety and weighing accuracy |
| 2. Core Workflow | Load materials, add water, mix, transport, discharge | Produce and deliver homogeneous concrete |
| 3. Post-Operation | Thoroughly clean drum and chute | Prevent damage and maintain machine longevity |
