Recovery angles play a critical role in winching operations by influencing the force dynamics and safety of the recovery process. When a winch line is not aligned straight (horizontally or vertically), the angle introduces additional resistance components, requiring careful calculation to ensure the winch's capacity isn't exceeded. Understanding these angles helps optimize mechanical advantage, prevent equipment failure, and ensure efficient recoveries in off-road scenarios like mud, snow, or rocky terrain. Properly accounting for angles ensures the winch operates within safe limits while maximizing its effectiveness.
Key Points Explained:
-
Impact of Recovery Angles on Force Dynamics
- Recovery angles alter the direction of the applied force, introducing lateral (sideways) or vertical (up/down) components.
- A straight pull (0° angle) applies force directly, but angled pulls increase resistance due to vector forces. For example, a 45° angle effectively increases the load on the winch by approximately 1.4 times due to trigonometric force distribution.
- This requires recalculating winching capacity to avoid overloading the system, which could lead to cable failure or winch damage.
-
Mechanical Advantage and Pulley Systems
- Using pulley blocks can reduce the required winching force by redistributing load through mechanical advantage.
- However, practical constraints like limited line length or pulley availability may restrict how much advantage can be gained.
- Recovery angles must still be factored in, as pulleys only mitigate—not eliminate—the added resistance from non-linear pulls.
-
Safety and Efficiency in Off-Road Recoveries
- Winches are vital for extracting vehicles from challenging terrains (mud, snow, rocks), but improper angle management risks equipment or injury.
- Excessive angles strain the winch motor, synthetic/dynamic ropes, and anchor points, increasing the chance of snapback or anchor failure.
- Operators should aim for the straightest possible pull or use redirects (like trees or additional pulleys) to minimize angular stress.
-
Calculating Adjusted Winching Capacity
- The effective load on the winch increases with the angle. A common formula is:
[ \text{Adjusted Force} = \frac{\text{Actual Load}}{\cos(\theta)} ] where (\theta) is the angle from the straight line. - For example, a 30° angle increases force by about 15%, while a 60° angle nearly doubles it.
- Winch ratings assume straight-line pulls, so exceeding safe angles without recalculation risks catastrophic failure.
- The effective load on the winch increases with the angle. A common formula is:
-
Practical Applications in Recovery Scenarios

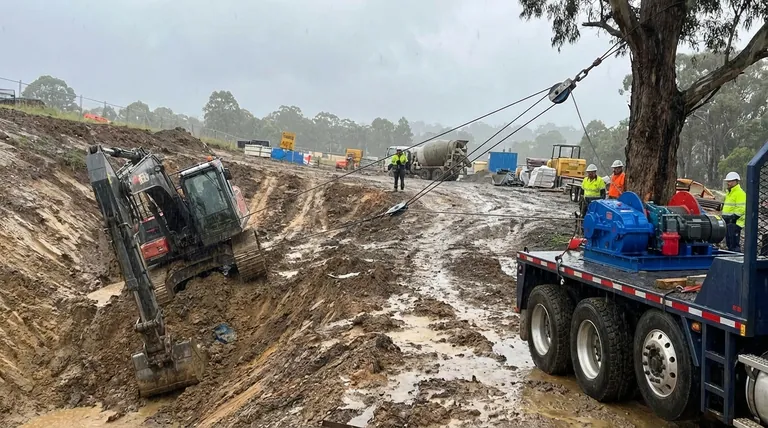

- In steep inclines or side pulls, angles are unavoidable, necessitating reinforced anchors (e.g., buried spare tires, rock crawlers) to handle redirected forces.
- Snatch blocks or redirect pulleys help manage angles but require careful rigging to prevent line entanglement or uneven load distribution.
- Training and situational awareness are crucial—operators must assess angles dynamically and adjust winching strategies accordingly.
By mastering recovery angles, operators enhance both safety and success rates in winching operations, ensuring equipment longevity and effective recoveries in demanding conditions.
Summary Table:
| Key Aspect | Impact of Recovery Angles |
|---|---|
| Force Dynamics | Angled pulls increase resistance—e.g., 45° angle raises load by ~1.4× due to vector forces. |
| Mechanical Advantage | Pulleys mitigate but don’t eliminate angle-induced resistance; line length limits advantages. |
| Safety Risks | Excessive angles strain winch motors, ropes, and anchors, risking snapback or failure. |
| Capacity Calculation | Adjusted Force = Actual Load / cos(θ); 60° angle nearly doubles required winching capacity. |
| Practical Solutions | Use redirects (trees, pulleys) or reinforced anchors to minimize angular stress. |
