What Does The Aggregate Batching System Consist Of? The 3 Core Components Explained

An aggregate batching system is fundamentally composed of three core parts: an aggregate supply system, a weighing system, and an electrical control system. These components work in concert to automatically measure and combine materials like sand, gravel, and crushed stone according to a precise recipe before they enter a concrete mixer.

The purpose of an aggregate batching system isn't just to move materials, but to precisely measure and combine them. It ensures the consistency and structural integrity of the final concrete by replacing manual guesswork with automated accuracy.

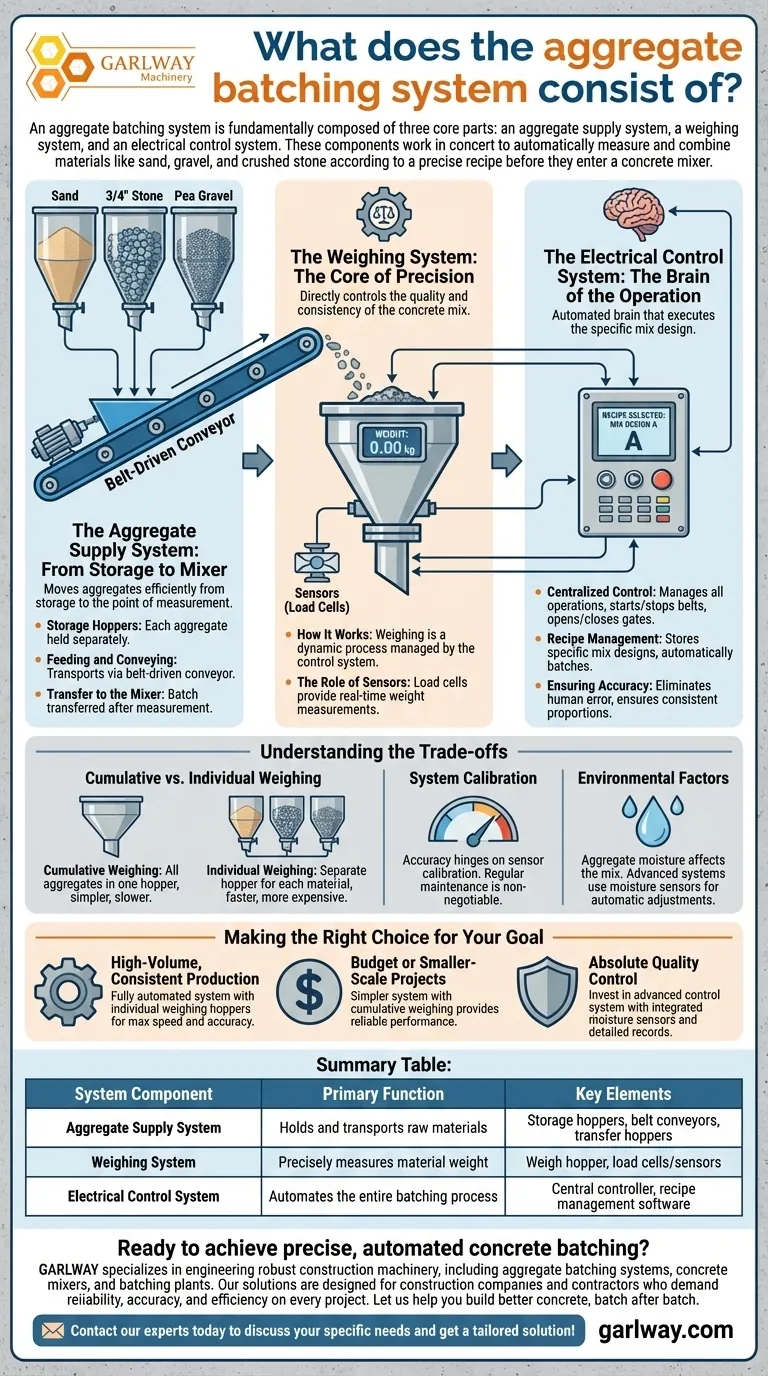

What does the aggregate batching system consist of? The 3 Core Components Explained

The Aggregate Supply System: From Storage to Mixer

The supply system is the mechanical framework that holds and transports the raw materials. Its goal is to move aggregates efficiently from storage to the point of measurement.

Storage Hoppers

Each type of aggregate (e.g., sand, 3/4" stone, pea gravel) is held in its own separate storage hopper. These large bins act as the starting point for the entire process.

Feeding and Conveying

Materials are discharged from the storage hoppers onto a belt-driven conveyor. This conveyor belt is the primary mechanism used to transport the aggregates to the weighing system.

Transfer to the Mixer

Once the correct weight of all aggregates has been measured, the batch is transferred into the concrete mixer, often through a collection or transfer hopper.

The Weighing System: The Core of Precision

This is the most critical part of the system, as it directly controls the quality and consistency of the concrete mix. The accuracy of the final product depends entirely on the precision of the weighing system.

How It Works

As aggregates are carried along the conveyor, they are discharged into a weighing hopper or weighed directly on a section of the belt. This weighing is a dynamic process managed by the control system.

The Role of Sensors

The entire batching process is controlled by sensors, most commonly load cells. These sensors provide real-time weight measurements to the electrical control system, telling it exactly when to stop feeding each material.

The Electrical Control System: The Brain of the Operation

The electrical control system coordinates the actions of the supply and weighing systems. It is the automated brain that executes the specific mix design.

Centralized Control

This system manages all operations, including starting and stopping the conveyor belts, opening and closing the hopper gates, and interpreting the data from the weighing sensors.

Recipe Management

The control system stores the specific recipes or "mix designs." An operator selects the desired recipe, and the system automatically weighs and batches each aggregate to meet the required specifications.

Ensuring Accuracy

By automating the process, the control system eliminates human error. It ensures that every single batch is produced with the same proportions, leading to a highly consistent final product.

Understanding the Trade-offs

While the core components are consistent, the complexity and precision of these systems can vary significantly, introducing important trade-offs.

Cumulative vs. Individual Weighing

Simpler, more cost-effective systems use cumulative weighing, where all aggregates are weighed one after another in the same hopper. More advanced systems use individual weighing, with a separate weigh hopper for each material, which is faster but more expensive.

System Calibration

The accuracy of the entire system hinges on the calibration of its sensors. An uncalibrated system, no matter how advanced, will produce incorrect batches. Regular maintenance and calibration are non-negotiable for quality control.

Environmental Factors

Factors like aggregate moisture content can significantly affect the final mix. Basic systems do not account for this, while more sophisticated control systems can incorporate moisture sensors to adjust water levels automatically, adding cost but improving precision.

Making the Right Choice for Your Goal

Selecting the right system configuration depends entirely on your project's specific needs for volume, precision, and budget.

If your primary focus is high-volume, consistent production: A fully automated system with individual weighing hoppers is essential for maximizing speed and accuracy.
If your primary focus is budget or smaller-scale projects: A simpler system using a single conveyor and cumulative weighing provides reliable performance in a more cost-effective package.
If your primary focus is absolute quality control: Invest in an advanced control system that can integrate moisture sensors and provides detailed batch records.

Ultimately, a well-designed aggregate batching system is the foundation for producing reliable, high-quality concrete every single time.

Summary Table:

System Component	Primary Function	Key Elements
Aggregate Supply System	Holds and transports raw materials	Storage hoppers, belt conveyors, transfer hoppers
Weighing System	Precisely measures material weight	Weigh hopper, load cells/sensors
Electrical Control System	Automates the entire batching process	Central controller, recipe management software
