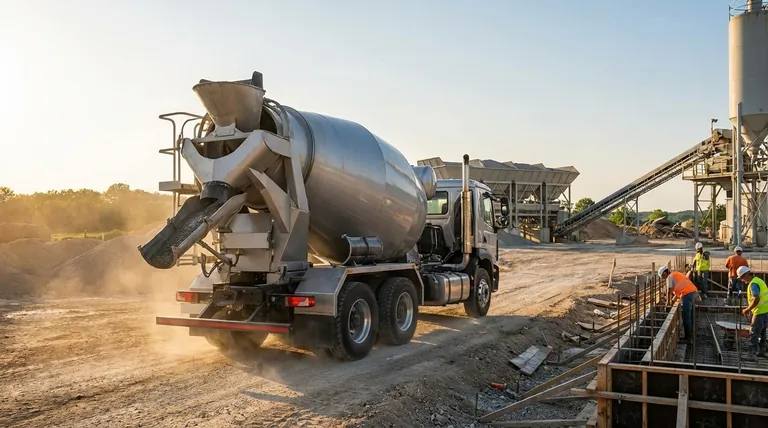

In short, low-speed agitation in a concrete truck mixer serves two primary functions: to maintain the homogeneity of the Portland Cement Concrete (PCC) and to prevent slump loss while the truck is in transit from the batch plant to the job site. This gentle turning, typically around 2 revolutions per minute (rpm), ensures the concrete delivered is the same quality as the concrete that was produced.
The core purpose of low-speed agitation is not to mix the concrete, but to preserve it. It's a maintenance process that counteracts the natural tendencies of concrete to separate and stiffen over time.
The Critical Role of Agitation in Concrete Quality
Once concrete is batched, the clock starts ticking. The journey to the construction site is a vulnerable period where the material's carefully engineered properties can degrade. Low-speed agitation is the primary tool to protect this investment.
Preventing Segregation
Segregation is the tendency for the components of concrete to separate. The heavier coarse aggregates will naturally settle to the bottom, while the lighter cement paste and water rise to the top.
This separation is detrimental to the concrete's structural integrity. Gentle, continuous agitation keeps all the ingredients—aggregates, sand, cement, and water—evenly distributed throughout the mix, ensuring a uniform and consistent material from the first yard poured to the last.
Counteracting Slump Loss
Slump is the measure of concrete's consistency or workability. Slump loss is the natural stiffening of concrete over time as the cement begins to hydrate.
Without agitation, this process can accelerate, making the concrete difficult to place, consolidate, and finish upon arrival. The slow turning action keeps the mixture pliable and maintains its specified slump for a longer period, preserving its workability for the construction crew.
Agitation vs. Mixing: Understanding the Difference
The drum on a truck mixer can rotate at different speeds because it performs two distinct functions: high-speed mixing and low-speed agitation. Confusing the two can lead to significant problems.
The Purpose of Low Speed (~2 rpm)
This is the agitation speed. It is a maintenance function designed to gently fold the material over itself. The goal is preservation—to keep the mix uniform and workable without introducing excess energy or air into it.
The Purpose of High Speed (~6-18 rpm)
This is the mixing speed. It is used to actively combine ingredients. This speed is required when water is added to a dry-batched load on-site or when making significant slump adjustments before the pour. It is a manufacturing process, not a preservation one.
Common Pitfalls and Considerations
While essential, agitation is not a magic bullet and must be managed correctly. Over-agitating can be just as harmful as not agitating at all.
The Risk of Over-Mixing
Every rotation of the drum imparts energy into the concrete. Excessive agitation, even at low speed, can generate heat, which accelerates the hydration process and causes premature setting. It can also grind down aggregates, altering the mix design and potentially weakening the final product.
For this reason, specifications often limit the total number of revolutions the drum can make before the concrete must be discharged.
The Danger of No Agitation
Allowing concrete to sit static in the drum during transit is a recipe for failure. The material will arrive segregated and stiff, making it unusable. This leads to rejected loads, project delays, and wasted material.
The Impact of Transit Time
The longer the concrete is in the truck, the more critical proper agitation becomes. Agitation buys time, but it cannot stop the hydration process indefinitely. It is a crucial tool for managing the logistical challenges of getting a perishable material from point A to point B.
Making the Right Choice for Your Goal
Understanding the purpose of agitation helps ensure the quality of the final product. Your focus on the job site will determine what you need to verify.
- If your primary focus is structural integrity: Confirm that the truck maintained consistent agitation during transit to prevent segregation, which can lead to weak, porous, or non-uniform sections in your structure.
- If your primary focus is workability: Proper agitation is your best defense against slump loss, ensuring the concrete is easy to place and finish according to the project specifications.
- If your primary focus is quality control: Be aware of the difference between agitation and mixing, and ensure the truck operator isn't using high-speed mixing to add unauthorized water to an aging load, which would compromise its strength.
Ultimately, this simple, low-speed rotation is a fundamental process that guarantees the concrete's designed performance is successfully delivered to the project.
Summary Table:
| Purpose of Low-Speed Agitation (~2 rpm) | Key Benefit |
|---|---|
| Prevent Segregation | Maintains uniform distribution of aggregates and cement paste for structural integrity. |
| Counteract Slump Loss | Preserves concrete workability and consistency for easier placement and finishing. |
