The definitive guideline for winch capacity is to select a winch rated for at least 1.5 to 2.0 times your vehicle's Gross Vehicle Weight Rating (GVWR). For a vehicle with a GVWR of 6,000 pounds, this means you should be looking at winches with a minimum capacity of 9,000 to 12,000 pounds. This isn't an arbitrary number; it's a critical safety margin.
Selecting a winch isn't about lifting your vehicle; it's about overcoming the immense resistance of being stuck. The 1.5x to 2.0x multiplier accounts for the suction of mud, the force of gravity on an incline, and the friction of dragging a dead weight, ensuring you have the power when you need it most.
Why You Need More Than Your Vehicle's Weight
Choosing a winch based purely on your vehicle's sticker weight is a common and dangerous mistake. The forces involved in a real-world recovery are far greater than the vehicle's weight alone.
Beyond Dead Weight: The "Stuck" Factor
A vehicle bogged down in mud or resting against an obstacle requires far more force to move than its simple weight suggests.
Resistance from mud suction, the friction of being dragged through rough terrain, and the simple physics of pulling up an incline can easily double the effective load on your winch. The capacity surplus is your safety margin against these variables.
GVWR: The Only Number That Matters
Always base your calculation on the Gross Vehicle Weight Rating (GVWR), not the curb weight.
GVWR represents the maximum safe operating weight of your vehicle, including itself, fuel, passengers, and all your cargo and modifications. Using this higher number ensures your winch can handle your vehicle when it's fully loaded for an expedition.
How Winch Ratings Actually Work
A winch's maximum pulling capacity (e.g., 10,000 lbs) is only available on the very first layer of rope wrapped around the drum, when the most line is spooled out.
With each additional layer of rope on the drum, the effective pulling power decreases significantly. Having a higher-rated winch ensures you still have sufficient power to finish the pull, even as the line gets shorter and spools onto the drum.
Understanding the Trade-offs
Choosing a winch isn't just about picking the biggest number. Both undersizing and drastically oversizing have consequences.
The Dangers of an Undersized Winch
An undersized winch will strain constantly, leading to overheating, motor burnout, and potential gear failure at the worst possible moment.
More importantly, it creates a dangerous recovery situation. Overloading can cause the winch line to snap, which can lead to catastrophic damage to vehicles and severe injury to anyone nearby.
The Downsides of an Oversized Winch
While it may seem safer, a winch that is far too large adds significant weight to the very front of your vehicle.
This excess weight can negatively impact your suspension performance, steering, and braking. It also represents a higher upfront cost and places a greater demand on your vehicle's battery and alternator.
Making the Right Choice for Your Vehicle
Use your intended purpose to determine where you should fall within the recommended 1.5x to 2.0x GVWR range.
- If your primary focus is standard off-roading and general preparedness: A winch rated for 1.5 times your vehicle's GVWR is the ideal, balanced choice for most situations.
- If your primary focus is heavy-duty recovery or extreme terrain: Aim closer to 2.0 times your GVWR for the maximum safety margin in deep mud, on steep inclines, or for assisting other, heavier vehicles.
- If your primary focus is light utility use like loading a boat: The 1.5x rule is still a safe guideline, though the forces involved are far more predictable than in a dynamic vehicle recovery.
Choosing the correct winch capacity is the most critical step in ensuring safe, reliable, and effective vehicle recovery.
Summary Table:
| Vehicle GVWR | Minimum Recommended Winch Capacity (1.5x GVWR) | Heavy-Duty Recommended Capacity (2.0x GVWR) |
|---|---|---|
| 6,000 lbs | 9,000 lbs | 12,000 lbs |
| 8,000 lbs | 12,000 lbs | 16,000 lbs |
| 10,000 lbs | 15,000 lbs | 20,000 lbs |
Ready to equip your vehicle with a reliable recovery solution?
Choosing the right winch is critical for safety and performance. GARLWAY specializes in high-quality construction and recovery machinery, offering durable winches, concrete mixers, and batching plants trusted by construction companies and contractors globally.
Our winches are engineered to provide the power and reliability you need for demanding situations. Let our experts help you select the perfect winch for your vehicle's GVWR and intended use.
Contact GARLWAY today for a personalized consultation and ensure you're prepared for any challenge.

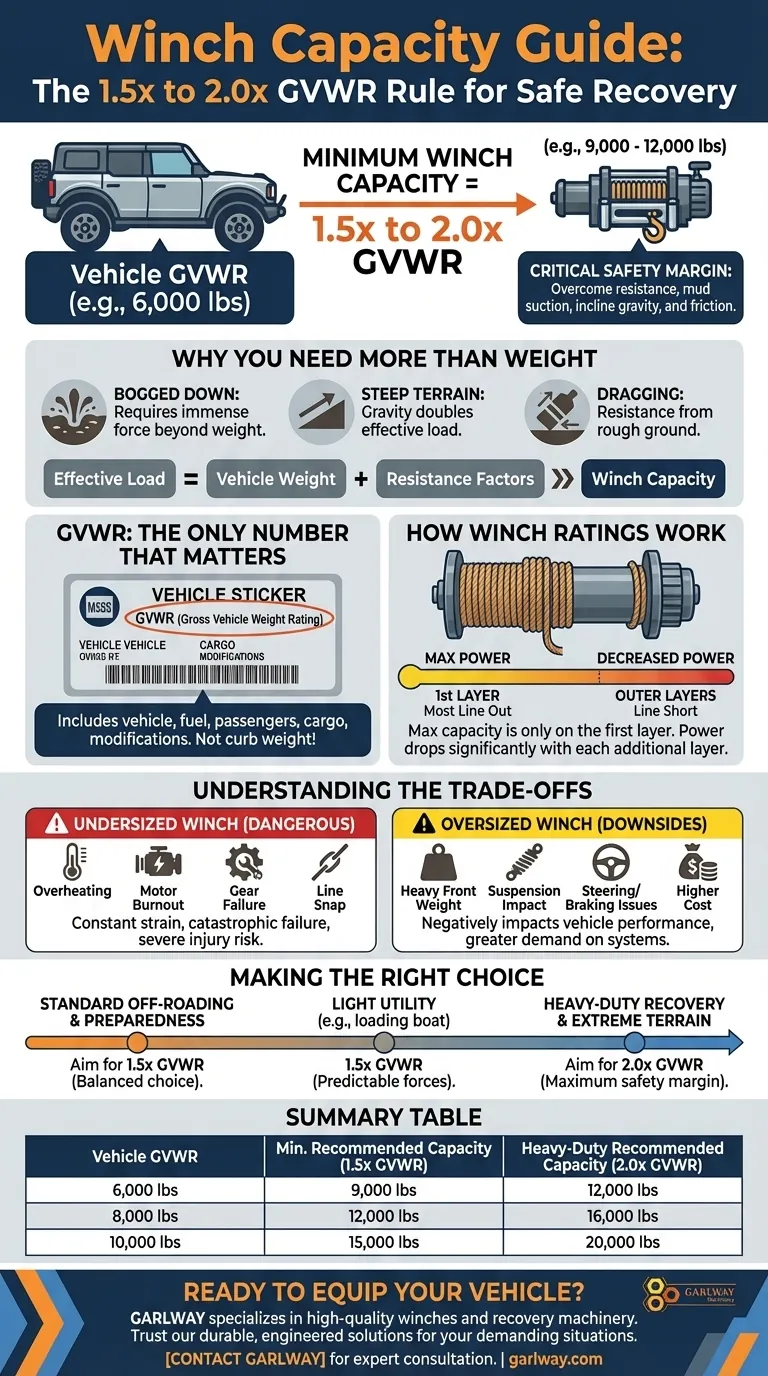

Visual Guide
