The most common causes of cylinder faults in a concrete mixing station are mechanical and environmental. These typically include eccentric piston rod installation, insufficient lubrication, internal contamination from impurities or moisture, and the eventual wear or damage of critical components like sealing rings.
The core issue behind most cylinder failures is not a defect in the cylinder itself, but a breakdown in the surrounding system. Addressing the root causes—proper installation, clean air supply, and consistent lubrication—is the key to preventing costly downtime.
Diagnosing the Root Causes
Cylinder failures rarely happen without a reason. Understanding the specific cause is the first step toward a reliable repair and preventing recurrence.
Mechanical Misalignment
An eccentric installation, where the piston rod is not perfectly aligned with the load, is a primary cause of premature failure. This misalignment creates uneven side-loading on the piston and rod.
This constant side pressure accelerates wear on the sealing rings and guide bushings, leading to internal leaks and reduced force. It can also eventually cause scratches on the piston rod itself.
Contamination and Lubrication Failures
The pneumatic system's health is critical. Insufficient lubrication from a poorly functioning oil mist separator causes increased friction, heat, and wear on all moving parts.
Likewise, impurities and condensate (water) in the air supply can corrode internal components and damage seals. This contamination often stems from issues with the air compressor or a lack of proper filtration.
Component Wear and Tear
Over time, even with perfect conditions, components degrade. Worn or damaged sealing rings are a frequent failure point, leading to air leaks that reduce the cylinder's output force.
Physical damage, such as scratches on the piston rod, creates a path for air to leak past the seals. Scratches also rapidly destroy new seals, making simple seal replacement an ineffective, short-term fix.
Common Symptoms of a Failing Cylinder
Identifying the problem early can prevent a complete shutdown. Look for these key indicators.
Insufficient or Erratic Force
The most obvious symptom is when the cylinder struggles to perform its task, such as opening or closing a gate. This can manifest as uneven or sluggish operation.
This is often caused by internal air leaks due to worn seals, piston rod jamming from misalignment, or an insufficient air supply from a clogged line or faulty regulator.
Audible Air Leaks
A hissing sound around the cylinder or its control valve is a clear sign of an external or internal air leak. This points directly to failing seals or fittings.
Understanding the Trade-offs: Prevention vs. Repair
Managing pneumatic systems involves a constant balance between proactive maintenance and reactive repairs.
The Cost of Neglecting Maintenance
Ignoring regular checks on lubrication systems, air filters, and mechanical alignment may save time in the short term. However, it almost guarantees premature and catastrophic failure later.
The cost of production downtime and emergency repairs far exceeds the investment in a simple preventative maintenance schedule.
The Limits of Simple Repairs
Simply replacing a worn seal without addressing the root cause is a temporary solution. If the piston rod is scratched or misaligned, the new seal will fail quickly.
A proper repair involves diagnosing the entire system: checking the rod's condition, verifying alignment, and ensuring the air supply is clean and lubricated.
How to Apply This to Your Operation
Your approach should be dictated by whether you are performing routine maintenance or troubleshooting an active problem.
- If your primary focus is maximizing reliability: Implement a strict schedule for checking the oil mist separator, draining air filters, and visually inspecting cylinder rod alignment and condition.
- If your primary focus is troubleshooting a fault: Start with the simplest cause by checking for a clear and sufficient air supply, then systematically inspect for misalignment, and finally, disassemble the cylinder to check for internal wear or contamination.
Ultimately, viewing the cylinder as part of a larger system—not just an isolated component—is the most effective strategy for ensuring long-term operational reliability.
Summary Table:
| Common Cause | Primary Symptom | Key Prevention Action |
|---|---|---|
| Mechanical Misalignment | Uneven/Sluggish Operation | Check piston rod alignment regularly |
| Insufficient Lubrication | Increased Friction & Heat | Maintain oil mist separator |
| Air Contamination (Moisture/Impurities) | Corrosion & Seal Damage | Ensure proper air filtration |
| Worn Sealing Rings | Audible Air Leaks, Reduced Force | Replace seals & address root causes |
Stop cylinder failures from halting your projects. GARLWAY specializes in construction machinery, offering durable winches, concrete mixers, and batching plants designed for maximum uptime. Our expert support helps contractors and construction companies globally implement proactive maintenance strategies. Contact GARLWAY today for reliable solutions that keep your mixing station running smoothly.

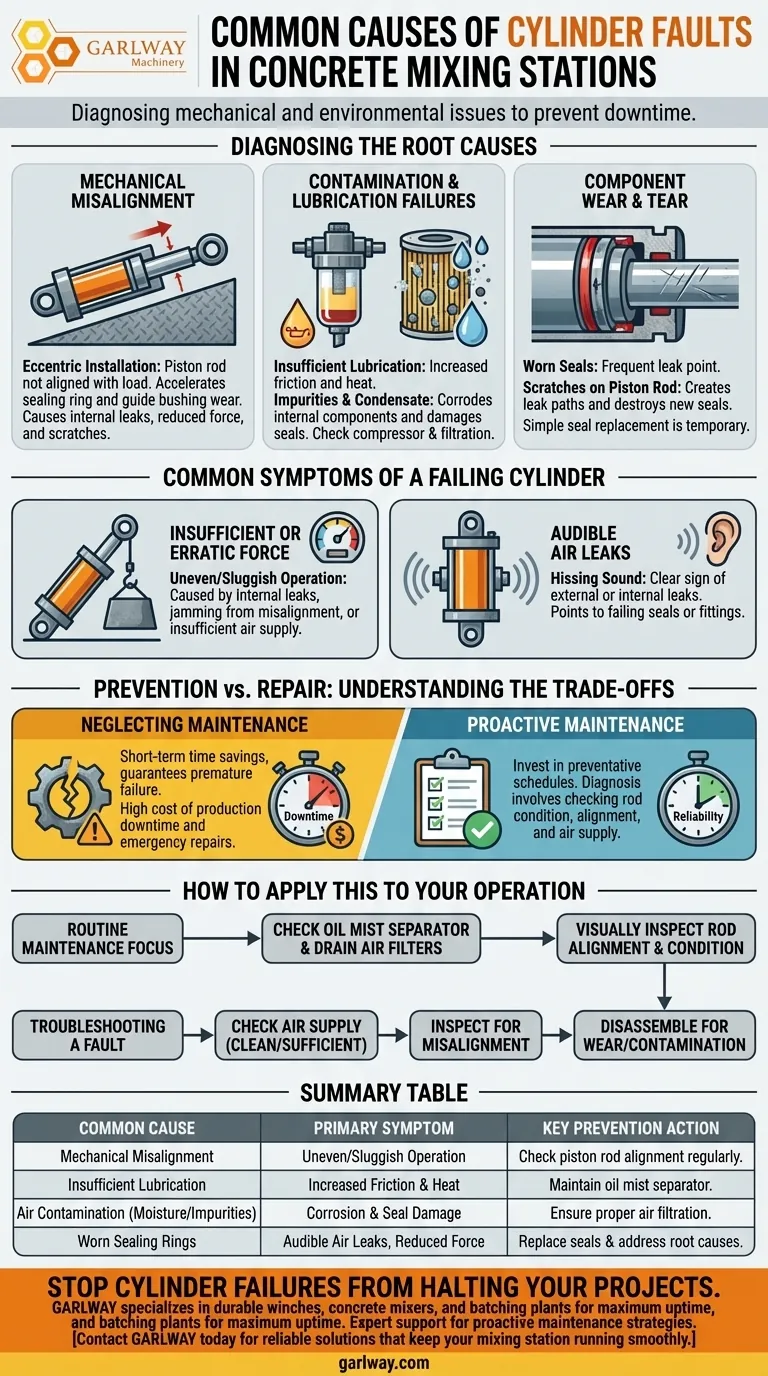

Visual Guide
