At its core, a self-loading concrete mixer simplifies the loading process by integrating a hydraulic shovel and a computerized weighing system into a single machine. This combination automates the scooping, measuring, and introduction of raw materials like aggregates, sand, and cement directly into the mixing drum, eliminating the need for a separate wheel loader and manual measurement.
The fundamental advantage is transforming a multi-step, labor-intensive process into a streamlined, one-person operation. It essentially combines a wheel loader and a mobile batching plant, ensuring speed, precision, and consistency right at the job site.
Deconstructing the Automated Loading Workflow
The efficiency of a self-loading mixer comes from its logical and automated operational sequence. Each step is designed to reduce manual effort and eliminate guesswork.
The Hydraulic Shovel at Work
The operator drives the machine directly to the material stockpiles. The front-mounted hydraulic shovel is then used to scoop the required aggregates and sand, just as a dedicated wheel loader would.
Precision Through Integrated Weighing
As materials are lifted in the shovel, the built-in weighing system measures the load. The operator monitors the computerized display to ensure the exact proportion of each material is gathered according to the pre-defined mix design.
Automated Cement and Water Addition
Cement can be added via the same bucket, often by breaking bags into the shovel for a precise weight measurement. Once the dry materials are in the drum, a powerful water pump introduces the exact amount of water required, also monitored by the control system.
Seamless Transition to Mixing
With all ingredients loaded accurately, the operator engages the mixing drum. A dedicated motor rotates the drum, ensuring a consistent and homogeneous concrete mixture is produced while the machine transports it to the pouring location.
Key Components That Enable Simplification
The simple operation is made possible by a few sophisticated, integrated systems working in unison.
The Articulated Hydraulic Shovel
This is the most visible component. It provides the muscle to lift heavy aggregates and the dexterity to scoop materials cleanly, drastically reducing the physical labor associated with loading.
The Computerized Control System
This is the brain of the operation. It ensures mix consistency by providing real-time weight data to the operator, guaranteeing that every batch meets the required specifications without manual calculation or measurement.
The Self-Contained Water System
The onboard water tanks and pump eliminate the need for separate water lines or manual bucketing. This system measures and injects water precisely, which is critical for achieving the desired concrete slump and strength.
Understanding the Trade-offs
While highly efficient, this technology comes with specific considerations that are important for an objective evaluation.
Initial Investment and Complexity
Self-loading mixers represent a higher upfront cost compared to traditional drum mixers. Their integrated hydraulic and electronic systems also introduce more complexity to maintenance and repair.
Dependence on Site Layout
The machine's effectiveness relies on having raw materials stockpiled in an area accessible to the mixer. A poorly organized site can negate much of the machine's speed advantage.
Operator Skill Requirement
While it simplifies the overall process, operating a self-loading mixer efficiently requires more skill than a simple mixer. The operator must be proficient in both driving the vehicle and manipulating the hydraulic loader and control system.
Making the Right Choice for Your Project
Selecting the right equipment depends entirely on your project's specific constraints and goals.
- If your primary focus is maximizing labor efficiency on small to medium-sized sites: The self-loading mixer's ability to combine loading and mixing into a one-person task offers unparalleled value.
- If your primary focus is ensuring consistent mix quality across multiple remote locations: The computerized weighing system provides a level of accuracy that is difficult to achieve with manual loading methods.
- If your primary focus is high-volume, continuous production at a single, large site: A dedicated stationary batching plant may still provide a more cost-effective and higher-output solution.
Ultimately, understanding this workflow allows you to match the right technology to your operational needs.
Summary Table:
| Feature | Simplifies Loading By | Key Benefit |
|---|---|---|
| Hydraulic Shovel | Scooping aggregates/sand directly | Eliminates need for a separate wheel loader |
| Computerized Weighing | Measuring materials in real-time | Ensures precise mix proportions & consistency |
| Onboard Water System | Automatically adding measured water | Guarantees correct slump and strength |
| Integrated Design | Combining loading and mixing in one machine | Enables efficient one-person operation on-site |
Ready to simplify your concrete operations and boost on-site efficiency?
At GARLWAY, we specialize in robust construction machinery for contractors and construction companies worldwide. Our self-loading concrete mixers are engineered to deliver the labor-saving automation and mix consistency your projects demand.
Contact our experts today to discuss how a GARLWAY self-loading mixer can be the perfect solution for your specific job site needs.

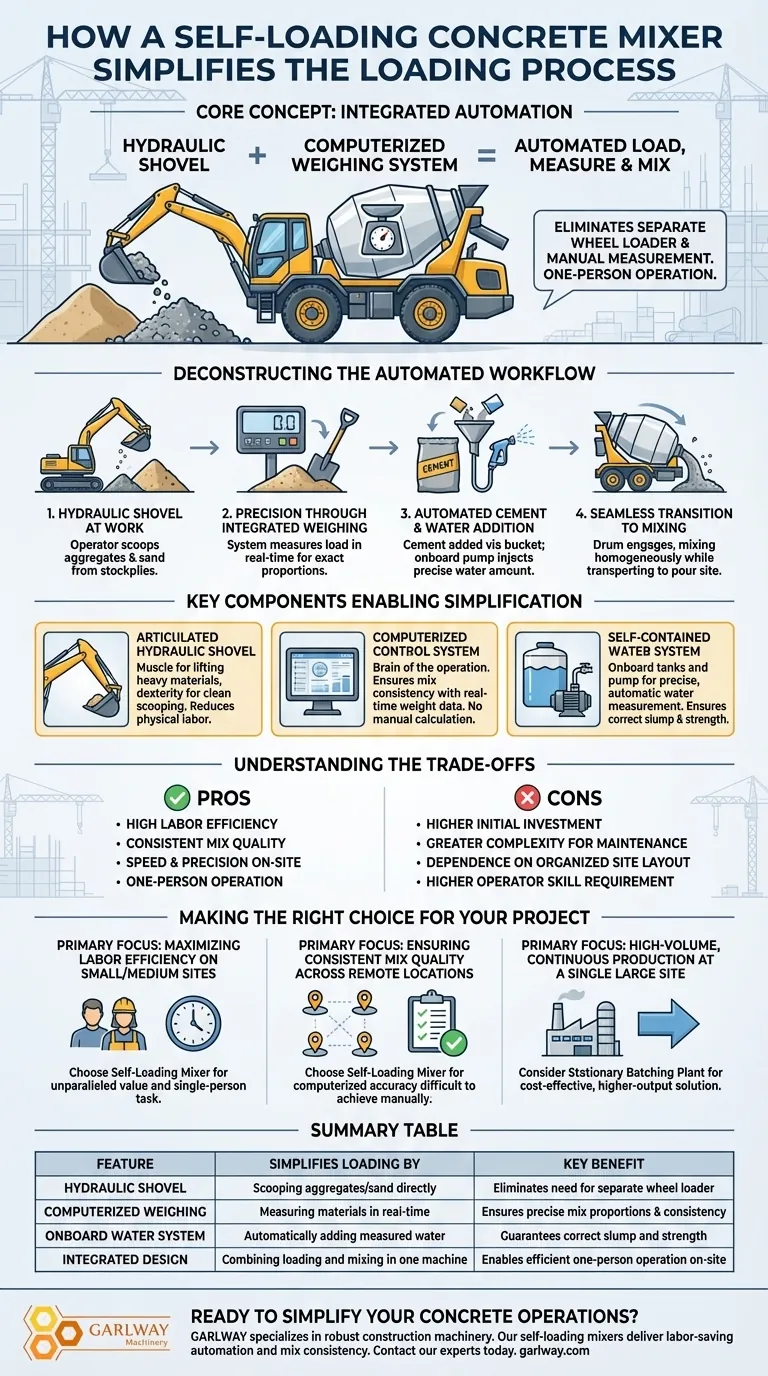

Visual Guide
