Introduction
Choosing the right wire rope strength for hoisting systems isn’t just about lifting capacity—it’s about balancing safety, efficiency, and compliance. Whether you’re handling construction materials, mining equipment, or bridge components, the wrong rope can lead to catastrophic failures. This guide breaks down the science of wire rope tensile strength, application-specific selection criteria, and real-world examples to help you make informed decisions.
Understanding Wire Rope Strength in Hoisting Systems
Wire ropes are the backbone of hoisting operations, but their performance hinges on tensile strength—the maximum load they can withstand before breaking.
Factors Influencing Tensile Strength
-
Material Composition:
- High-quality carbon steel (0.5–0.8% carbon content) is standard for hoisting ropes.
- Impurities like sulfur and phosphorus must stay below 0.035% to prevent brittleness.
-
Construction Type:
- 6×19 and 6×37 configurations (6 strands with 19–37 wires each) offer flexibility and strength for dynamic loads.
-
Core Material:
- Fiber cores (FC) absorb lubricant but weaken under heat; steel cores (IWRC) provide higher strength and crush resistance.
Ever wondered why some ropes snap under seemingly manageable loads? Often, it’s hidden corrosion or improper diameter-to-load ratios.
Matching Strength to Load and Environment
Calculating Working Load Limit (WLL)
- Rule of Thumb: WLL = Rope’s minimum breaking strength / Safety factor (typically 5:1 for hoists).
- Example: A rope with 10-ton breaking strength has a 2-ton WLL.
Environmental Adaptations
-
Corrosive Environments (e.g., shipbuilding, mining):
- Use galvanized or stainless-steel ropes.
-
High-Temperature Zones (e.g., metallurgy):
- Steel-core ropes resist deformation better than fiber cores.
Visual Metaphor: Think of wire ropes like suspension bridges—each strand distributes stress, but the weakest link defines total capacity.
Safety and Compliance Considerations
Industry Standards
- OSHA/ASME B30.9: Mandates regular inspections for kinks, corrosion, or diameter reduction exceeding 10%.
- Mining Applications: Underground hoists require ropes with documented fatigue resistance and abrasion tests.
Inspection Red Flags
- Broken Wires: More than 6 breaks in one lay length condemn the rope.
- Birdcaging: Twisted strands indicate overloading or improper installation.
Case Studies: Industry-Specific Applications
1. Bridge Construction
- Challenge: Lifting 50-ton precast concrete segments in windy conditions.
- Solution: 6×36 IWRC ropes with 1,860 MPa tensile strength and anti-rotation coatings.
2. Underground Mining
- Challenge: Corrosion from acidic water and vertical shaft stresses.
- Solution: Galvanized 6×25 ropes with independent wire cores for crush resistance.
Conclusion: Actionable Selection Steps
- Define Load Requirements: Include shock loads and environmental stressors.
- Prioritize Compliance: Align with OSHA/ASME standards for your industry.
- Inspect Proactively: Replace ropes at first signs of wear—never exceed WLL.

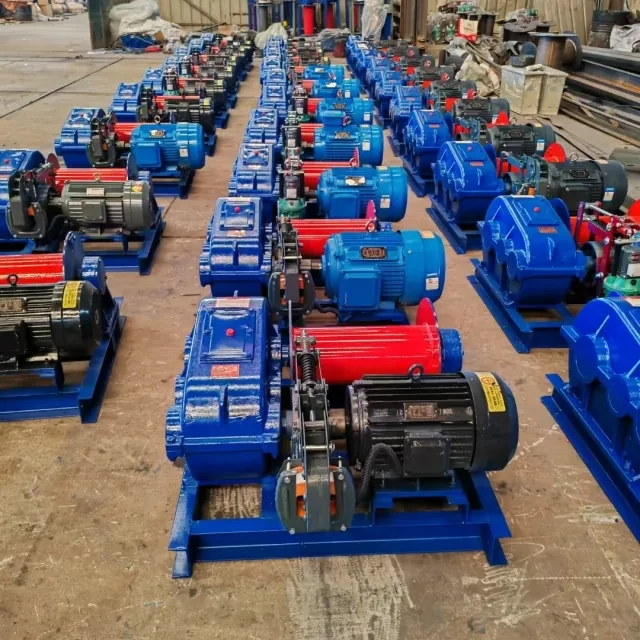

For reliable hoisting solutions, explore Garlway’s range of winches and construction machinery, engineered for heavy-duty performance and safety.
Final Thought: The right wire rope doesn’t just lift loads—it safeguards lives and projects.
