The short answer is leverage. A winch's pulling capacity is highest on the first layer of line because the motor has the greatest mechanical advantage. Each additional layer of line wrapped onto the drum increases the spool's effective diameter, which reduces that leverage and decreases the available pulling force.
The core principle to understand is that a winch motor produces a fixed amount of rotational force (torque). As the layers of line build up, that same amount of torque has to turn a larger diameter, resulting in less linear pulling power—typically a loss of 10-12% for each added layer.
The Core Principle: Torque vs. Pulling Force
Your winch doesn't create linear force directly. It creates rotational force, or torque. The winch drum then converts this torque into the linear pulling force that moves your load. The relationship between these two is governed by the diameter of the drum.
The First Layer: Maximum Leverage
When the winch line is on its first layer, it's wrapped directly around the drum's core. This is the smallest possible diameter the motor has to turn.
Think of it like using a wrench. A shorter wrench (a smaller diameter) allows you to apply force with more precision and control, maximizing the motor's leverage. This is where your winch achieves its maximum rated pulling capacity.
Each Additional Layer: The Diameter Grows
As you add a second, third, or fourth layer of line, you are effectively making the drum "thicker." The motor is now pulling on a line wrapped around a much larger effective diameter.
To go back to the wrench analogy, this is like trying to turn the same bolt using a much wider handle. With the exact same amount of input force (torque), your resulting linear pull becomes weaker. The mechanical advantage is reduced.
Quantifying the Reduction in Capacity
This isn't a small effect; the loss of power with each layer is significant and predictable. Understanding this is crucial for safe and effective winching.
The 10% Rule (A Guideline)
A reliable rule of thumb is that a winch loses about 10-12% of its rated capacity for each additional layer of line on the drum.
For example, a 10,000 lb winch might only be able to pull around 9,000 lbs on the second layer, 8,000 lbs on the third, and even less on the subsequent layers.
The Impact of Friction
While the changing diameter is the primary reason for power loss, friction is a secondary factor.
More layers of line create more opportunities for the line to rub against itself and the winch drum flanges. This friction creates resistance that the winch motor must also overcome, further reducing the net pulling force.
Understanding the Trade-offs
It's important to distinguish between the drum's structural capacity and the winch's mechanical pulling power, as they can seem contradictory.
Effective Diameter and Pulling Power
As we've established, the effective diameter (the drum core plus the layers of rope) dictates the mechanical advantage. To maximize pulling power, you want the smallest effective diameter possible, meaning you want to be on the inner layers of the drum.
Base Drum Diameter and Structural Strength
A winch with a physically larger base drum is often structurally stronger. A larger-diameter piece of steel can simply withstand greater crushing forces before it deforms or fails. This is a design consideration for the manufacturer, who must build a drum strong enough to handle the line tension on that critical first layer.
How to Apply This to Your Project
Understanding this principle allows you to use your winch more effectively and, most importantly, more safely.
- If your primary focus is maximum pulling power: Spool out as much line as you safely can to get down to the first or second layer on the drum. This ensures the winch is operating at its peak mechanical advantage.
- If you are performing a difficult recovery: Always try to get to the inner layers of the drum and consider using a snatch block, which can nearly double your pulling power by further increasing your mechanical advantage.
- If you are choosing a winch line: Avoid installing an excessively long line for your drum size, as it guarantees you will frequently be operating on the weaker outer layers.
By managing the amount of line on your drum, you are directly controlling your winch's available power.
Summary Table:
| Layer of Line | Estimated Pulling Capacity (vs. Rated) | Key Factor |
|---|---|---|
| First Layer | 100% (Maximum) | Smallest drum diameter, greatest leverage |
| Second Layer | ~90% | Increased effective diameter reduces mechanical advantage |
| Third Layer | ~80% | Further reduction in pulling power |
| Fourth+ Layer | <80% | Significant power loss; friction also increases |
Need a winch with reliable, powerful performance for your construction or recovery project?
GARLWAY specializes in heavy-duty construction machinery, offering robust winches designed for maximum pulling power and durability. Our winches are engineered to deliver consistent performance, helping construction companies and contractors complete demanding tasks safely and efficiently.
Contact GARLWAY today to discuss your project needs and find the perfect winching solution!

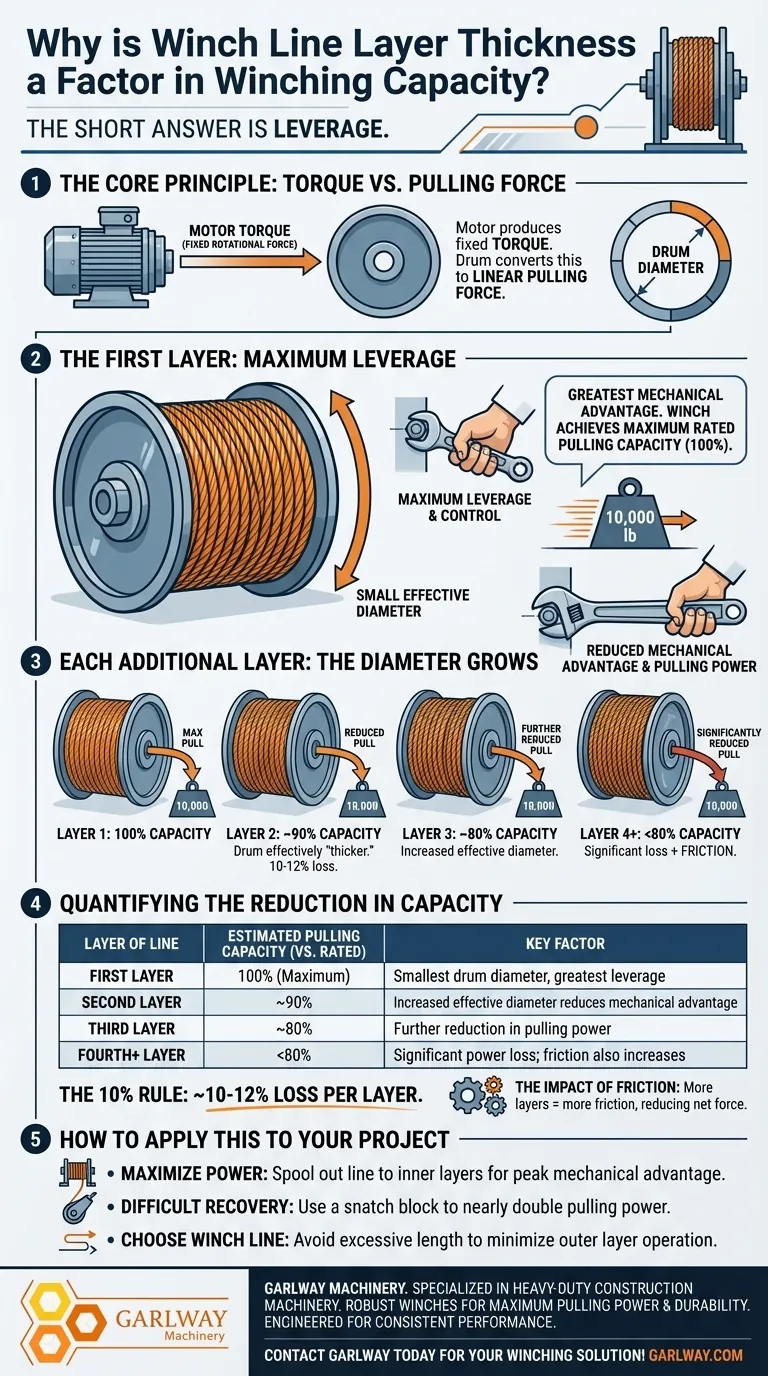

Visual Guide
