At a fundamental level, the difference is simple: winches are designed to pull loads horizontally, while hoists are engineered to lift loads vertically. Although they appear similar, this distinction in their intended direction of force is critical. Using the wrong tool for the job can lead to equipment failure and significant safety risks.
While both winches and hoists move heavy objects, their core designs are optimized for entirely different forces. A winch is built to overcome the friction of pulling a load across a surface, whereas a hoist is engineered with specific safety mechanisms to suspend a load against gravity.
The Core Design Difference: Pulling vs. Lifting
The primary function of each device dictates its entire construction, from its braking system to its mounting and gear train.
Winches: Designed for Horizontal Pulling
A winch's primary job is to move a load across a flat or inclined surface. Think of pulling a vehicle out of the mud or dragging a log.
They work by winding a wire rope or cable around a drum, creating immense tension to overcome friction.
Because they pull horizontally, winches offer significant mounting flexibility. They can be placed on floors, walls, vehicles, or even ceilings to get the right pulling angle.
Hoists: Engineered for Vertical Lifting
A hoist is a specialized tool built for one purpose: to safely lift and lower a load directly against the force of gravity.
They are most often positioned directly above the object being lifted, a common sight in garages, warehouses, and construction sites.
The entire design prioritizes control and safety for suspending heavy objects, where a failure would be catastrophic.
Critical Differences in Mechanics and Safety
The most important distinctions are not what you see on the outside, but the internal mechanisms that handle the load.
The Braking System: The Single Most Important Distinction
Hoists are required to have a mechanical load brake. This type of brake automatically engages to lock the load in place, preventing it from dropping even if power is lost. It is designed specifically to hold a suspended weight.
Most standard winches use a dynamic braking system. This system relies on resistance from the motor and gears to slow or stop the drum. It is not designed to hold a suspended load and can fail under the constant force of gravity. While some specialized winches have mechanical brakes, it is not a default feature.
Speed and Precision
Hoists are generally slower, with typical speeds around 8 meters per minute. This deliberate pace provides the precision and control needed to safely position a heavy, suspended object.
Winches are often twice as fast, with speeds around 16 meters per minute. Speed is prioritized because fine control is less critical when dragging a load horizontally.
Cable and Rope Configuration
Hoists typically use a fixed, relatively short length of wire rope or chain (e.g., 6 or 12 meters) optimized for a specific vertical lifting range.
Winches are equipped with much longer cables, often 100 meters or more, to provide the versatility needed for long-distance pulling applications.
Common Pitfalls and Misconceptions
Confusing these tools can lead to dangerous assumptions. Understanding their limitations is key to safe operation.
The Danger of Lifting with a Standard Winch
You should never use a standard winch for vertical lifting. Its dynamic brake is not designed to hold a suspended load and could release, causing the object to fall. The gear train is also not engineered for the unique stress of fighting gravity directly.
The Inefficiency of Pulling with a Hoist
Using a hoist to pull a load from the side (side-loading) can damage the equipment. Hoists are designed for a straight, vertical pull, and angled force can cause the rope or chain to spool incorrectly and damage the internal guides and drum.
Power Source is Not a Defining Factor
Both winches and hoists are available in manual, electric, pneumatic, and hydraulic variants. The power source does not change the fundamental purpose of the tool; a winch is still for pulling, and a hoist is still for lifting.
Making the Right Choice for Your Application
To select the correct tool, you must be clear about the primary force you are working against.
- If your primary focus is vehicle recovery or moving an object across the ground: A winch is the correct and safest tool.
- If your primary focus is lifting an engine, materials, or equipment vertically in a workshop or on a job site: A hoist is the only safe and appropriate choice.
- If your primary focus is moving a load up a very steep, fixed incline: You need a winch specifically rated for "lifting" or "hoisting" that is explicitly equipped with a mechanical load brake.
Always choose the tool engineered for the specific force you need to manage—pulling for a winch, lifting for a hoist—to ensure safety and operational integrity.
Summary Table:
| Feature | Winch | Hoist |
|---|---|---|
| Primary Function | Pulls loads horizontally | Lifts loads vertically |
| Key Safety Feature | Dynamic Brake (for stopping) | Mechanical Load Brake (for holding) |
| Typical Speed | ~16 meters/min (faster) | ~8 meters/min (slower, more precise) |
| Cable Length | Long (e.g., 100+ meters) | Short, fixed length (e.g., 6-12 meters) |
Need the Right Equipment for Your Project?
Choosing the wrong tool is not just inefficient—it's dangerous. At GARLWAY, we specialize in manufacturing robust and reliable construction machinery, including winches and concrete equipment. Our experts can help you select the perfect tool for your specific pulling or lifting needs, ensuring safety and efficiency on your job site.
Contact GARLWAY today for a consultation and get the right machinery for your construction or contracting business!

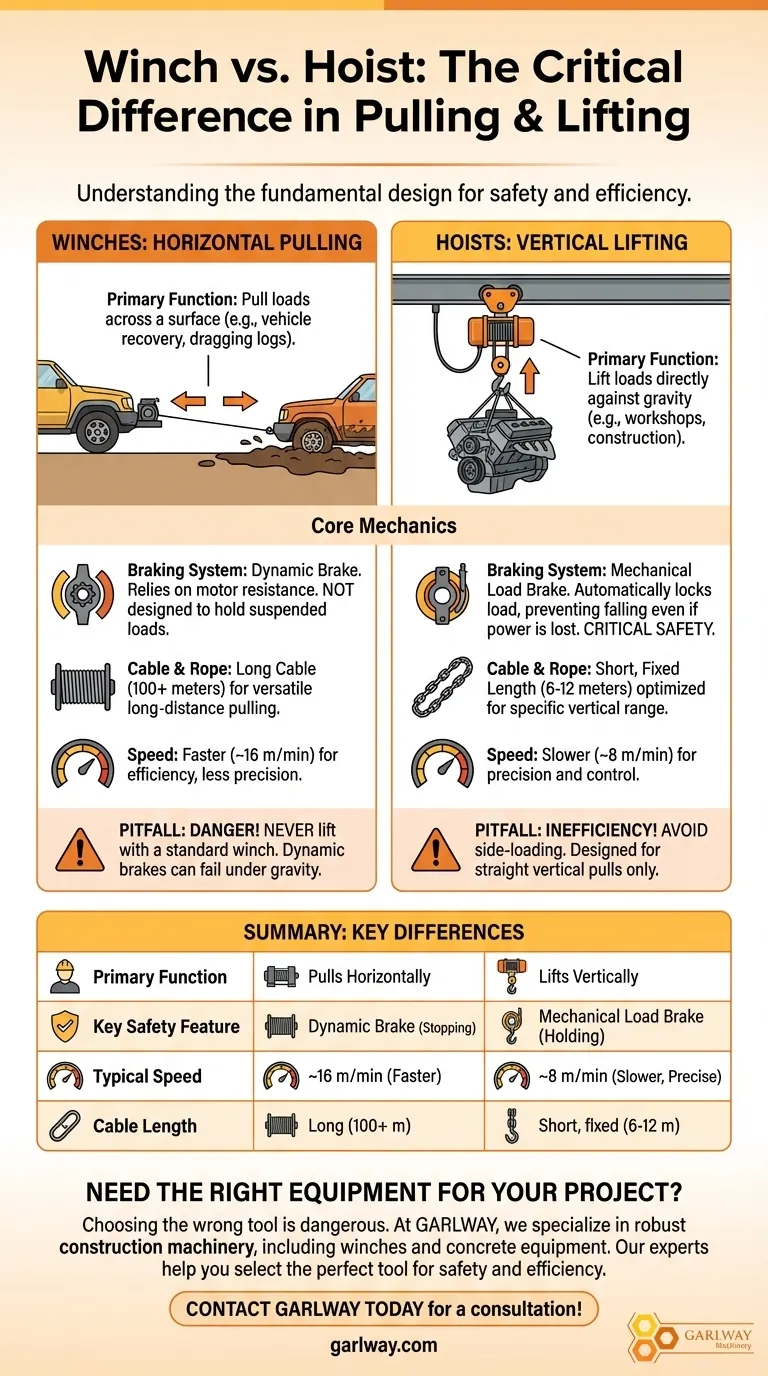

Visual Guide
