Operating a self loading concrete mixer correctly involves understanding its components, following a structured operational process, and prioritizing safety and maintenance. The key is to balance efficiency with precision, ensuring consistent concrete quality while extending equipment lifespan. Proper operation begins with thorough pre-checks, continues through careful material handling and mixing, and concludes with systematic post-operation procedures.
Key Points Explained:
-
Pre-Operation Preparation
- Inspect hydraulic systems, hoses, and connections for leaks or damage
- Verify all safety features (emergency stops, alarms) are functional
- Check fluid levels (oil, hydraulic fluid, coolant) and tire pressure
- Ensure the mixing drum is clean and free of hardened concrete residue
- Confirm the water dosing system is calibrated and functioning
-
Core Operational Stages
-
Material Loading:
- Use the hydraulic loading arm to scoop aggregates accurately
- Follow the manufacturer's recommended loading sequence (typically coarse aggregates first)
- Avoid overloading the hopper beyond rated capacity
-
Water Addition:
- Precisely meter water using the automated dosing system
- Account for material moisture content when calculating water-cement ratio
-
Mixing Process:
- Maintain consistent drum rotation speed (typically 12-15 RPM for mixing)
- Ensure adequate mixing time (usually 70-100 revolutions) for homogeneity
-
Transportation:
- Keep drum rotating during transit to prevent segregation
- Adjust rotation speed to 2-3 RPM during movement
-
Discharging:
- Position the adjustable chute carefully to direct concrete flow
- Reverse drum rotation for complete discharge
- Clean chute immediately after each discharge
-
Material Loading:
-
Operator Control Considerations
- Monitor the electronic control panel for:
- Material weight measurements
- Water-cement ratio indicators
- Drum rotation speed and direction
- Make gradual adjustments to avoid sudden movements that could destabilize the mixer
- Maintain clear visibility of all operations from the cabin
- Monitor the electronic control panel for:
-
Safety Protocols
- Always engage parking brake before loading/discharging
- Keep clear of moving parts during operation
- Wear appropriate PPE (hard hat, safety glasses, high-visibility vest)
- Establish and maintain safe working zones around the equipment
-
Post-Operation Procedures
- Thoroughly clean the mixing drum and chute with water immediately after use
- Inspect wear parts (mixing blades, hopper teeth) for damage
- Document any operational issues for maintenance tracking
- Store the mixer on level ground with the drum secured
-
Maintenance for Longevity
- Lubricate all moving parts according to the manufacturer's schedule
- Regularly check and tighten all bolts and connections
- Monitor hydraulic fluid quality and filter condition
- Keep electrical components clean and dry
- Schedule professional servicing at recommended intervals
Have you considered how ambient temperature affects the mixing water requirements during operation? This often-overlooked factor can significantly impact concrete quality in varying weather conditions. The ability to precisely control these parameters is what makes modern self loading concrete mixer units so valuable on construction sites.

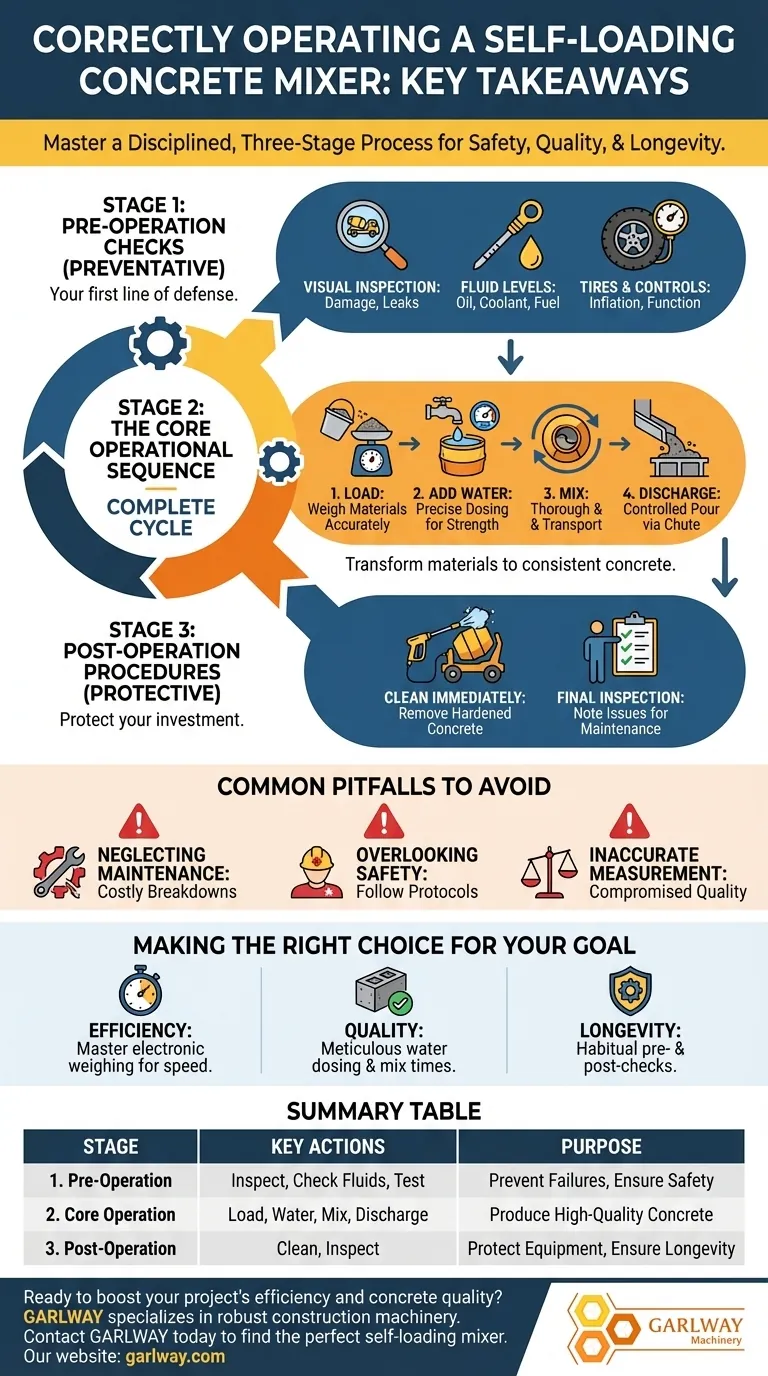

Summary Table:
| Key Aspect | Critical Actions |
|---|---|
| Pre-Operation | Inspect hydraulics, check safety features, verify fluid levels, clean drum |
| Material Loading | Follow loading sequence, avoid overloading, use hydraulic arm precisely |
| Mixing Process | Maintain 12-15 RPM, ensure 70-100 revolutions for homogeneity |
| Transportation | Rotate drum at 2-3 RPM to prevent segregation |
| Safety Protocols | Engage parking brake, wear PPE, establish safe zones |
| Post-Operation | Clean drum immediately, inspect wear parts, document issues |
| Maintenance | Lubricate moving parts, check bolts, monitor hydraulic fluid, schedule servicing |
