The most common faults in concrete mixers fall into three primary categories: mechanical failures in the mixing and hoist systems, overheating of the primary motors, and malfunctions within the electrical control circuits. These issues typically arise from loose components, excessive wear, obstructions, or improper voltage and alignment.
The vast majority of concrete mixer failures are not sudden or unpredictable. They are the direct result of mechanical wear and electrical strain, making routine inspection and preventative maintenance the most critical factor in ensuring reliable operation.
Analyzing Mechanical Failures
Mechanical issues are the most frequent source of downtime. They directly impact the machine's ability to mix and transport materials, often leading to more severe secondary damage if not addressed promptly.
The Mixing Drum Assembly
The core of the mixer is its drum, where intense physical forces are at play. Loose connecting bolts are a primary culprit, causing mixing blades and support arm liners to shift or detach.
This misalignment not only reduces mixing efficiency but can also lead to catastrophic failure of the drum components.
Furthermore, stones or hardened aggregate can become wedged between the mixing blades and the drum wall. This obstruction can cause the entire mixing motor to stall, halting production instantly.
The Hoist and Reducer System
For mixers equipped with a hopper hoist, the gear reducer is a critical component. Abnormal noise, such as grinding or whining, is a key symptom of a problem.
This noise often indicates that the tapered roller bearings inside the reducer have been damaged. Operating the machine in this condition can lead to the complete failure of the hoist mechanism.
Diagnosing Motor and Electrical Issues
The motors provide the power for all operations, and they are highly susceptible to issues caused by both electrical supply and mechanical resistance. Overheating is the most common symptom of an underlying problem.
Overheating of the Mixing Motor
A mixing motor running too hot is a clear warning sign. The causes are varied but are almost always linked to excessive load.
This can be caused by severely worn mixing blades, which increase the effort needed to move the material. Large gaps between the blades and the drum wall, stone jamming, or high resistance in the shaft end support also force the motor to work harder.
Finally, an external factor like low voltage from the power supply will cause the motor to draw more current to compensate, generating excess heat.
Overheating of the Hoist Motor
Similarly, the hoist motor can overheat due to preventable issues. Improperly aligned or non-parallel tracks for the hopper create significant friction, placing a heavy load on the motor.
A motor brake with a separation gap that is too small can also cause drag and resistance during operation. As with the mixing motor, low voltage is another common cause of overheating.
Failures in Control and Indicator Systems
The control system provides crucial feedback to the operator. A fault indicator light that fails to illuminate can mask a serious problem.
This is often caused by a broken first limit switch for the hopper, a loose rocker arm, or a rusted striker. Damage to the protective rubber sleeve can also allow moisture and debris to compromise the switch's function.
Understanding the Trade-offs and Hidden Costs
While concrete mixers are adaptable and require a relatively small initial investment, their operational reliability is directly tied to the quality of their maintenance. Neglecting this leads to significant hidden costs.
The Constant Need for Maintenance
The faults listed above highlight that these machines are not "set and forget." Bolts loosen, blades wear down, and electrical components fail. Regular maintenance is not an option but a fundamental requirement for operation.
Operational Inefficiencies
An unmaintained mixer quickly becomes inefficient. It suffers from high raw material loss, inconsistent concrete quality, and requires more personnel to manage and troubleshoot. Furthermore, larger models have significant power consumption, which is exacerbated when motors are forced to work harder against unnecessary resistance.
A Proactive Approach to Mixer Reliability
Your strategy for dealing with these common faults should be proactive rather than reactive. Focusing on preventative checks will maximize uptime and extend the life of your equipment.
- If your primary focus is preventing downtime: Implement a daily pre-operation check for loose bolts in the drum, obstructions between the blades, and any abnormal noises from the hoist reducer.
- If your primary focus is extending machine lifespan: Immediately investigate any instance of motor overheating to address the root cause, whether it's mechanical resistance or a voltage issue.
- If your primary focus is operator safety: Regularly test all indicator lights and limit switches to ensure the machine's control and feedback systems are fully functional.
Ultimately, consistent, detail-oriented maintenance is the key to transforming a concrete mixer from a potential liability into a reliable asset.
Summary Table:
| Fault Category | Common Symptoms | Primary Causes |
|---|---|---|
| Mechanical Failures | Loose bolts, abnormal noise, stalled motor | Worn blades, stone jamming, damaged bearings |
| Motor Overheating | Hot mixing/hoist motor, excessive power draw | Low voltage, misalignment, high mechanical resistance |
| Electrical Issues | Faulty indicator lights, control malfunctions | Broken limit switches, moisture damage, loose connections |
Stop costly downtime and extend your concrete mixer's lifespan. GARLWAY specializes in construction machinery, offering durable and reliable concrete mixers, winches, and batching plants for construction companies and contractors globally. Our expert team can help you implement a proactive maintenance plan to prevent common faults and maximize your operational efficiency. Contact GARLWAY today for a consultation and keep your projects on schedule!

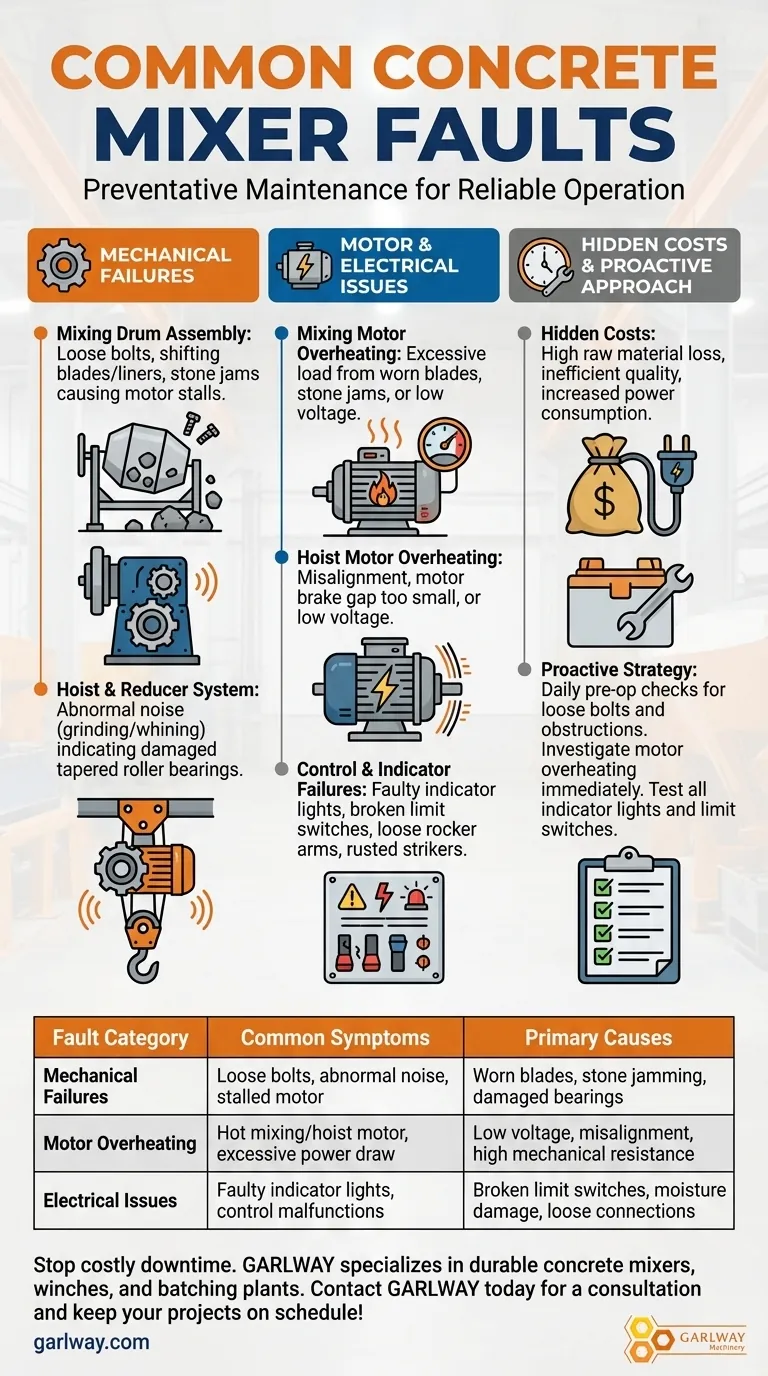

Visual Guide
