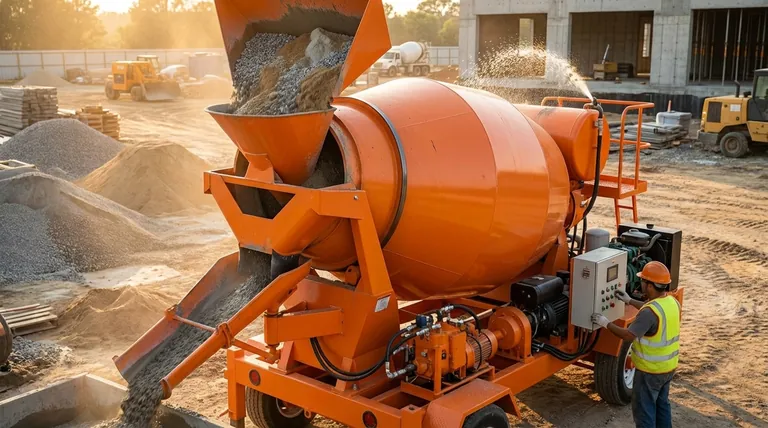

At its core, a concrete mixer machine is a system built from three fundamental units: a feeding unit for loading materials, a mixing unit for combining them, and a discharge unit for unloading the finished concrete. These units are powered and controlled by a prime mover, a transmission, and increasingly, an electronic control system.
A concrete mixer is best understood not as a single object, but as an integrated system. Its purpose is to precisely combine aggregates, cement, and water through a controlled process of feeding, mixing, and discharging to produce homogeneous concrete.
The Three Core Functional Units
Every concrete mixer, regardless of its size or complexity, performs three primary functions. These are handled by distinct, interconnected units.
The Feeding Unit (Loading and Measuring)
The feeding unit is responsible for getting the raw materials into the mixer accurately. This is the starting point for quality concrete.
Components in this unit often include a loading arm or hopper to lift materials like sand and gravel. Modern systems incorporate a weighing system to measure each aggregate in real-time, ensuring the mix design is followed precisely.
The Mixing Unit (The Heart of the Machine)
This is where the chemical and physical transformation into concrete happens. Its design is critical for the final product's quality.
The central component is the mixing drum or pan. In common tilting-drum mixers, the drum's rotation, combined with internal blades, lifts and tumbles the materials. A water supply system introduces the exact amount of water needed for the reaction.
The Discharge Unit (Unloading the Final Product)
Once the concrete is thoroughly mixed, it must be unloaded efficiently and safely.
This is handled by the unloading or discharging mechanism. In a tilting-drum mixer, the entire drum tilts to pour out the concrete. Other designs, known as compulsory mixers, use a gate or door at the bottom of a stationary pan.
The Power and Control Systems
The three functional units are inert without the systems that drive and coordinate them. These are the machine's muscle and brain.
The Prime Mover and Transmission
The prime mover is the power source, typically a diesel engine or an electric motor.
This power is transferred to the mixing drum and other components through a transmission mechanism, which includes gearboxes and reducers to manage speed and torque.
Hydraulic and Electronic Systems
Many modern mixers use a hydraulic system to power the mechanical components, such as lifting the loading arm or tilting the drum.
An overarching electronic control system manages all operations. It coordinates the weighing, water filling, mixing time, and discharge, ensuring consistency and automation.
Understanding the Trade-offs: Drum vs. Compulsory Mixers
The specific components inside the mixing unit define the mixer's type and its best use case. The two most common designs have distinct advantages.
Tilting-Drum Mixers
These are the most recognizable type, featuring a large rotating drum that tilts. The internal blades and rotation do the work.
They are excellent for mixing coarse aggregates and are often used for substantial construction projects where large volumes are needed.
Compulsory Mixers
These mixers, also known as pan mixers, feature a stationary drum or pan. The mixing action comes from internal paddles or stars that rotate through the material.
This design provides a more intense, forced mixing action, resulting in a highly uniform and consistent concrete. They are often preferred for high-quality or precast concrete production.
Making the Right Choice for Your Goal
Selecting the right mixer depends entirely on the requirements of your project.
- If your primary focus is large-volume construction with standard mixes: A tilting-drum mixer is a robust and efficient choice for handling coarse aggregates on-site.
- If your primary focus is high-strength, precast, or specialty concrete: A compulsory (pan) mixer will deliver the superior uniformity and quality required for demanding applications.
Ultimately, understanding these core components and their functions empowers you to choose and operate the right machine for the job.
Summary Table:
| Component Unit | Key Parts | Primary Function |
|---|---|---|
| Feeding Unit | Loading Arm, Hopper, Weighing System | Accurately load and measure raw materials (aggregates, cement). |
| Mixing Unit | Mixing Drum/Blades, Water Supply System | Combine materials to create a homogeneous concrete mix. |
| Discharge Unit | Tilting Mechanism, Discharge Gate | Safely and efficiently unload the finished concrete. |
| Power & Control | Engine/Motor, Hydraulic System, Electronic Controls | Provide power and automate the mixing process for consistency. |
