To determine winch capacity for your boat, you must first calculate the total weight of your ground tackle (the anchor plus all of the chain or rope) and multiply that figure by three. This provides the minimum pulling power required to handle the anchor under real-world working conditions.
The core principle is that a boat's anchor winch isn't just lifting dead weight; it's overcoming the additional forces of suction from mud, wind, and current. The standard 3x multiplier is a critical safety factor that accounts for these unpredictable loads.
Breaking Down the Capacity Calculation
Choosing the right winch is a matter of physics, not guesswork. Following a simple two-step process ensures you have the power you need when conditions are less than ideal.
Step 1: Calculate Total Ground Tackle Weight
Your "ground tackle" or "rode" is everything the winch has to pull up from the seabed. You must find the combined weight of all its components.
Start with the anchor's weight. Then, add the weight of the entire length of your anchor chain or rope. Chain weight is typically specified in kilograms or pounds per meter/foot.
For example: A 16 kg anchor on 11 meters of 8mm chain (which weighs 1.4 kg per meter) results in a total ground tackle weight of 31.4 kg (16 kg + [11 m * 1.4 kg/m]).
Step 2: Apply the Working Load Multiplier
Once you have the total static weight, multiply it by three. This converts the simple weight into a safe working load capacity.
Using our previous example: 31.4 kg of ground tackle multiplied by 3 equals a minimum required winch capacity of 94.2 kg. Many experts recommend a multiplier of four for an even greater safety margin, which would be 125.6 kg.
This multiplier is essential because it accounts for the immense suction created when an anchor is buried in a muddy or sandy bottom. It also provides the extra power needed to operate safely in strong winds or currents.
Beyond the Formula: Other Critical Factors
The basic calculation gives you a baseline, but a truly informed decision requires considering how the winch operates and the specifics of your vessel.
How Winches Are Rated
A winch's advertised pulling capacity applies to the first layer of rope or chain wrapped around the drum. This is the point of maximum mechanical advantage.
As more line is retrieved and the drum fills, the effective pulling power decreases with each additional layer. This is a critical reason why the safety multiplier is so important—it ensures you still have sufficient power when the drum is nearly full.
Boat Size and Displacement
While the primary calculation is based on ground tackle weight, the size and displacement (total weight) of your boat matter.
A heavier boat puts more strain on the entire anchoring system, especially in rough seas. For larger, heavier vessels, opting for a more powerful winch and a 4x multiplier is a wise investment in safety and equipment longevity.
Physical Space and Constraints
The most powerful winch is useless if it doesn't fit in your anchor well or locker. Always measure the available space before purchasing and ensure the chosen model can be installed securely and correctly.
Understanding the Trade-offs
Choosing a winch involves balancing power, cost, and practicality. Making the wrong compromise can have significant consequences.
The Dangers of an Undersized Winch
An undersized winch is a liability. It can lead to motor burnout, tripped circuit breakers, or a complete inability to retrieve your anchor when it's dug in deep or you're fighting a strong current.
This can turn a minor inconvenience into a genuine emergency, forcing you to cut your anchor loose.
The Cost of an Oversized Winch
While far safer than undersizing, choosing a winch that is excessively powerful is not without drawbacks. It will be more expensive, heavier (adding unnecessary weight to the bow), and will draw significantly more power from your boat's electrical system.
Making the Right Choice for Your Boat
Use your anchoring needs to guide your final decision on capacity and features.
- If your primary focus is coastal day-cruising in fair weather: A winch that meets the standard 3x multiplier of your ground tackle weight will be sufficient and reliable.
- If your primary focus is offshore passage-making or anchoring in areas with poor holding ground: Select a more robust winch using a 4x multiplier to ensure you can retrieve your anchor in the most challenging conditions.
- If you are upgrading to a heavier anchor or a longer all-chain rode: You must recalculate your required winch capacity, as the original winch may now be dangerously undersized.
Ultimately, selecting the correct winch capacity is a crucial investment in your boat's safety and your own peace of mind.
Summary Table:
| Factor | Description | Key Consideration |
|---|---|---|
| Ground Tackle Weight | Combined weight of anchor and rode (chain/rope). | Calculate the total static weight. |
| Safety Multiplier | Multiply total weight by 3 (or 4 for heavy vessels). | Accounts for suction, wind, and current. |
| Winch Rating | Pulling capacity on the first layer of the drum. | Power decreases as the drum fills. |
| Boat Size/Displacement | Total weight of your vessel. | Heavier boats require more powerful winches. |
Ready to select the perfect winch for your vessel?
Don't leave your safety to chance. The experts at GARLWAY specialize in durable, high-performance marine winches and construction machinery. We can help you choose a winch with the precise capacity and reliability you need for safe anchoring.
Contact GARLWAY today for a personalized consultation and ensure your next voyage is secure.

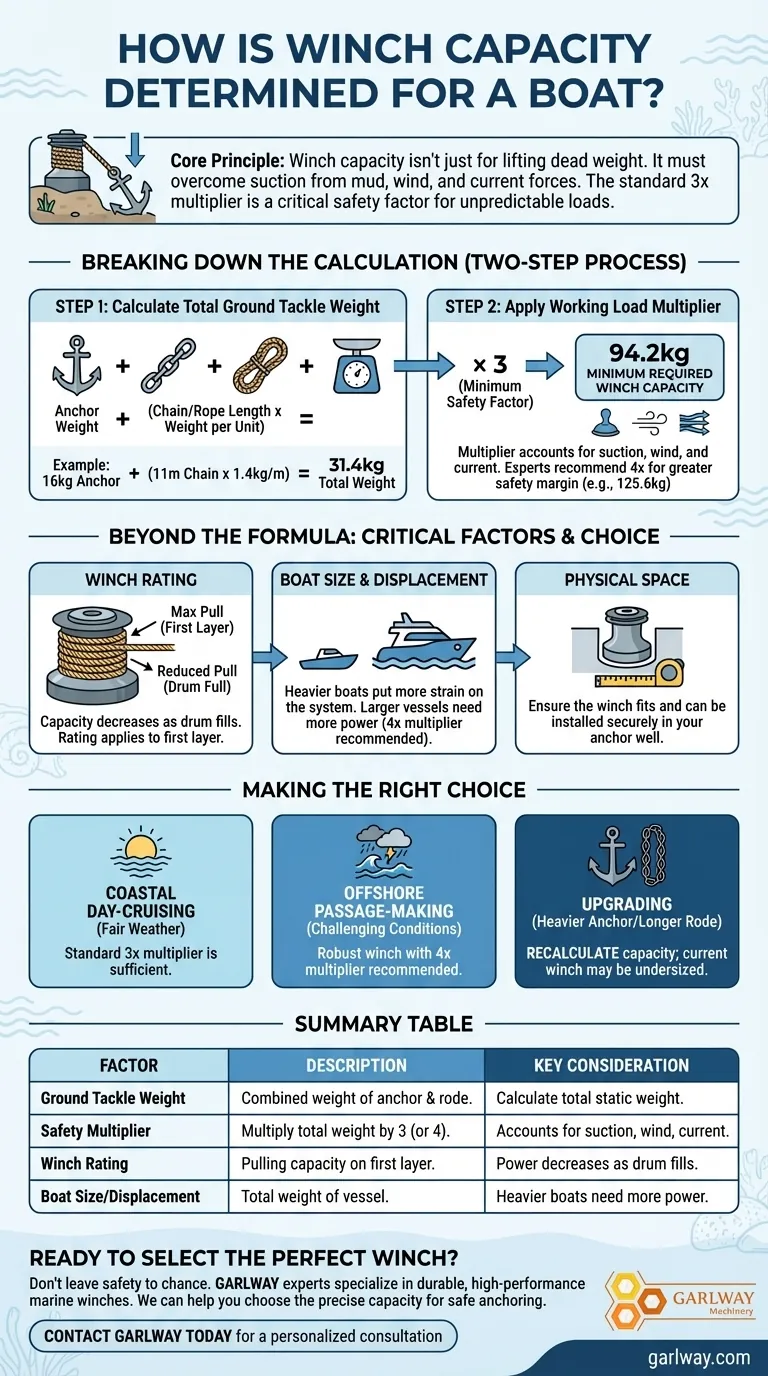

Visual Guide
