In short, a self-loading concrete mixer discharges concrete through a combination of two primary actions. The entire mixing drum is hydraulically tilted downwards, and the flow is then guided by an adjustable discharge chute. The operator controls the drum's tilt angle and rotation, along with the chute's position, to pour the concrete precisely where it is needed on the construction site.
The key to the process is operator control. The discharge isn't a simple dump; it's a precisely managed flow combining the force of gravity from a tilting drum with the fine-tuned guidance of a hydraulic chute.
The Two Core Mechanisms of Discharge
To understand how a self-loading mixer works, it's essential to break down the discharge process into its main components. Each part plays a distinct role in moving the concrete from the drum to the formwork efficiently.
Tilting the Mixing Drum
The primary method for releasing the concrete is by tilting the entire mixing drum downwards. This is a rapid, gravity-assisted process.
The drum can be tilted significantly, often up to 120 degrees, to allow the well-mixed concrete to flow out of the outlet. This powerful tilting action is ideal for moving large volumes of concrete quickly.
Directing the Flow with a Hydraulic Chute
Once the concrete begins to exit the drum, the hydraulic chute takes over for precise placement. This chute is adjustable and controlled directly by the operator.
The operator can move the chute to guide the concrete stream accurately into forms, trenches, or other specific locations, minimizing spillage and manual labor.
The Role of Drum Rotation
The spiral blades inside the mixing drum are crucial for both mixing and discharging. During discharge, the operator can control the rotation of the drum.
This rotation works with the tilt to push the concrete out of the outlet in a steady, controlled manner. This ensures a consistent flow and helps prevent segregation of the aggregate, sand, and cement in the mix.
The Operator's Control System
Every function of the self-loading mixer, from loading aggregates to discharging the final product, is managed from a single location.
Centralized Cabin Controls
The operator has a dedicated cabin with all the necessary controls. From this vantage point, they can manage the drum's tilt, its rotation speed and direction, and the precise positioning of the discharge chute.
Achieving Precision
This centralized control system is what makes the machine so effective. The operator can make real-time adjustments to the discharge rate and placement, ensuring the concrete is delivered exactly as required by the project specifications.
Key Benefits and Best Practices
Understanding the mechanics allows you to appreciate the advantages and necessary precautions when operating this equipment.
Benefit: Speed and Efficiency
The ability to tilt the drum for rapid discharge makes this method highly suitable for projects that require a fast and continuous pour.
Benefit: Preventing Segregation
The combination of tilting and controlled rotation helps maintain the homogeneity of the concrete mix during discharge, ensuring its structural integrity is not compromised.
Best Practice: Proper Positioning
Before beginning the discharge process, it is critical to position the mixer on stable, level ground. This ensures the safety of the operation and the stability of the machine as the weight shifts during the pour.
Making the Right Choice for Your Goal
- If your primary focus is rapid bulk pouring: Utilize the full tilt angle of the drum to leverage gravity for the fastest possible discharge.
- If your primary focus is precise placement: Rely on small, controlled adjustments of the hydraulic chute and a steady drum rotation to guide the concrete flow accurately.
- If your primary focus is operational safety: Always confirm the mixer is positioned on firm, stable ground before you begin to tilt the drum and discharge the load.
Mastering control over these discharge functions is essential for maximizing the efficiency and accuracy of your concrete work.
Summary Table:
| Component | Function | Key Feature |
|---|---|---|
| Hydraulic Drum Tilt | Rapid, gravity-assisted bulk discharge | Tilts up to 120 degrees for fast pouring |
| Adjustable Discharge Chute | Precisely guides the concrete flow | Operator-controlled for accurate placement |
| Drum Rotation | Ensures a steady, consistent flow | Prevents material segregation during discharge |
| Centralized Cabin Controls | Allows operator to manage the entire process | Enables real-time adjustments for efficiency and precision |
Ready to enhance your project's efficiency with precise concrete placement?
GARLWAY specializes in manufacturing robust and intelligent self-loading concrete mixers for construction companies and contractors globally. Our machines are engineered for operator ease, rapid discharge, and pinpoint accuracy, directly translating to faster project completion and reduced labor costs.
Let us help you pour with precision. Contact our experts today to find the perfect solution for your needs!

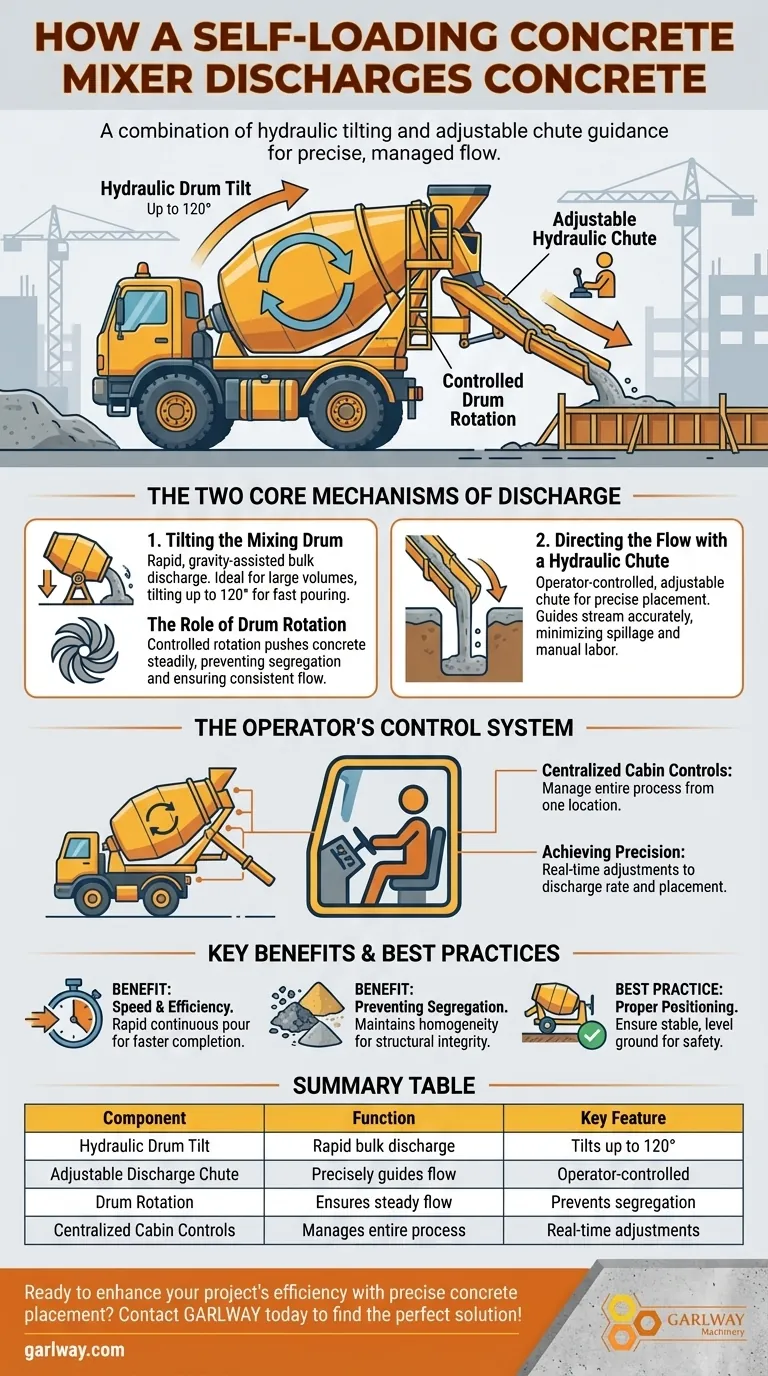

Visual Guide
