Industrial hoists are the backbone of heavy lifting operations, but their stability hinges on precise technical execution. Whether you're working on unstable soil or managing long-term installations, understanding the interplay between surface preparation, anchor systems, and compliance standards is non-negotiable for safety and efficiency. This guide breaks down the critical requirements for hoist stabilization across diverse environments, backed by engineering principles and failure case studies.
Foundations for Safe Hoist Operation
Surface Preparation Criteria for Different Soil Types
Problem-Solving Approach: Soil type dictates stabilization strategy. For example:
- Sandy/Granular Soils: Require compaction to 95% Proctor density to prevent settling.
- Clay/Rocky Terrain: Needs grading to eliminate slope instability (max 5° incline recommended).
Pro Tip: Ever wondered why some hoists tilt prematurely? Inadequate soil testing (e.g., skipping plate load tests) is a leading culprit.
Anchor System Configuration: Depth Ratios and Load Distribution
Pyramid Structure Development:
- Conclusion First: Anchor depth must exceed 1:3 ratio (depth to exposed height) for dynamic loads.
-
Sub-Arguments:
- Shallow anchors (
- Concrete footings should distribute loads at 45° angles to minimize point stress.
- Data Backing: ASTM E488 mandates pull-test validation for anchors supporting >10-ton loads.
Visual Metaphor: Think of anchor systems like tree roots—deeper and wider spreads prevent toppling.
Stake Reinforcement Mechanics and Angle Calculations
Key Emphasis:
- Temporary Installations: Use 60° stake angles for rapid deployment (e.g., construction sites).
- Permanent Setups: 75°–90° angles with helical stakes resist long-term corrosion.
Failure Prevention: A 2021 incident involving a collapsed gantry highlighted undersized stakes (12mm vs. required 20mm diameter for 8-ton loads).
Compliance and Risk Mitigation
ASTM/OSHA Requirements for Permanent vs Temporary Installations
Regulatory Breakdown:
| Requirement | Permanent Installations | Temporary Installations (≤90 days) |
|---|---|---|
| Inspection Frequency | Quarterly (OSHA 1926.1434) | Pre-shift (OSHA 1926.1412) |
| Wire Rope Criteria | Non-rotating, 6x19 IWRC | Rotation-resistant, 8-strand |
Human Impact: Non-compliant wire ropes caused 37% of hoist failures in mining operations (MSHA 2022 report).
Case Analysis: Collapse Incidents from Improper Wire Rope Selection
Lesson Learned: A refinery project hoist collapsed due to:
- Using general-purpose ropes instead of oil-resistant types.
- Ignoring OSHA’s 10:1 safety factor for corrosive environments.
Interactive Question: Would your current ropes pass a salt-spray test?
Maintenance Protocols for Long-Term Stability
Actionable Checklist:
- Daily: Inspect for rope kinks and anchor corrosion.
- Monthly: Re-torque anchor bolts to 30% above initial specs (accounts for material relaxation).
- Annually: Conduct ultrasonic thickness testing on load-bearing components.

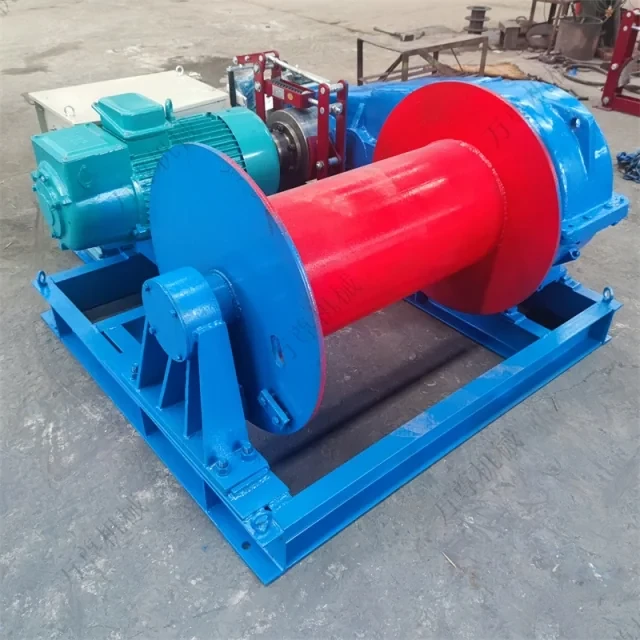

Brand Alignment: Products like Garlway’s winch systems integrate wear sensors for real-time maintenance alerts.
Conclusion: Stabilization as a System
Hoist stability isn’t about single components—it’s a system where soil, anchors, and compliance interact. To minimize risk:
- Test First: Never skip geotechnical surveys or pull tests.
- Match Materials to Environment: Use corrosion-resistant alloys near coastlines.
- Leverage Smart Tools: Adopt telemetry-enabled equipment for predictive maintenance.
Final Thought: In an industry where failures cost lives, precision isn’t optional. Whether you’re using Garlway’s machinery or custom rigs, these principles ensure your lifts stay grounded—literally.
