What Are The Two Basic Types Of Anchor Windlasses? Horizontal Vs. Vertical Explained

The two basic types of anchor windlasses are horizontal and vertical. These classifications refer directly to the orientation of the main driveshaft that turns the gypsy, the specialized wheel that grips your anchor chain. Each design places the motor and gearbox in a different location, which fundamentally impacts installation, deck space, and chain handling.

The core decision between a horizontal and vertical windlass is a trade-off between on-deck simplicity and below-deck space. Horizontal models are self-contained units on deck, while vertical models save deck space but require a specific layout and sufficient room in the chain locker below.

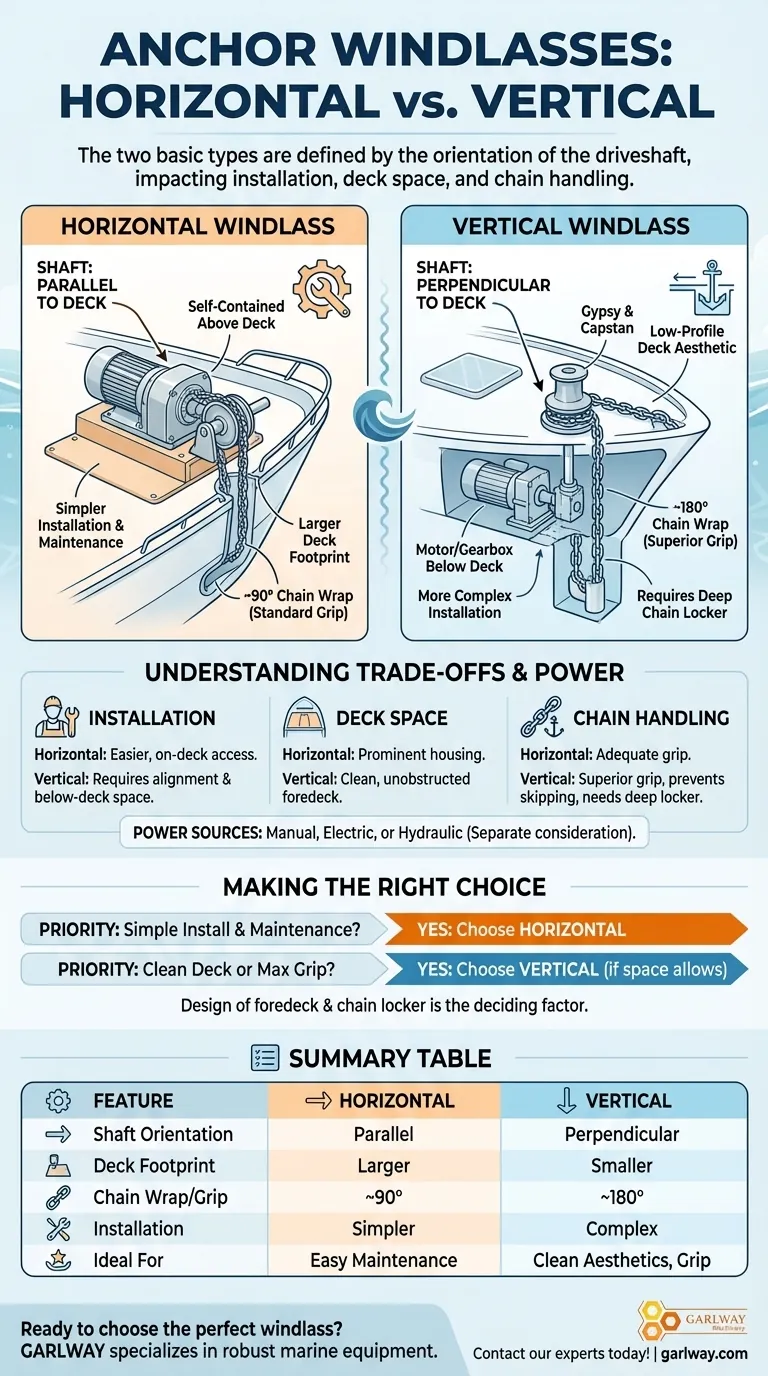

What are the two basic types of anchor windlasses? Horizontal vs. Vertical Explained

The Core Distinction: Shaft Orientation

The primary difference between the two types is how the machinery is mounted on your boat. This single design choice creates a cascade of other functional differences.

Horizontal Windlasses Explained

A horizontal windlass has its main shaft oriented parallel to the deck. The motor, gearbox, and gypsy are all housed together in a single, self-contained unit mounted above the deck.

The anchor chain approaches the gypsy from the side, wraps over the top (typically about 90 degrees of contact), and then feeds down into the chain locker through a deck pipe.

Because the entire mechanism is above deck, these units are often easier to install and access for maintenance.

Vertical Windlasses Explained

A vertical windlass features a driveshaft that is oriented perpendicular to the deck. Only the gypsy and a capstan drum (if equipped) are visible on deck, creating a very low, clean profile.

The motor and gearbox are located directly below the deck unit, requiring sufficient vertical space in the chain locker or forepeak.

This design allows the chain to make a much larger wrap around the gypsy (often 180 degrees), which provides a more secure grip and reduces the chance of the chain skipping under load.

Understanding the Trade-offs

Choosing the right windlass requires understanding the practical implications of each design. The best choice is not about which is "better" overall, but which is better suited to your specific vessel and needs.

Installation and Maintenance

Horizontal windlasses are generally simpler to install. Since the entire unit is mounted on deck, you primarily need a flat, strong mounting surface and a hole for the chain to pass through. All components are readily accessible for service.

Vertical windlasses have a more complex installation. You must align the on-deck unit with the motor and gearbox below, and you must ensure you have adequate space and structural support in the chain locker.

Deck Space and Aesthetics

For boat owners concerned with a clean, uncluttered deck, the vertical windlass is the clear winner. Its low profile keeps the foredeck open and free of obstruction.

The horizontal windlass has a much larger footprint on deck, as the entire housing is visible. While robust, it is a more prominent piece of equipment.

Chain Handling and Locker Space

The vertical windlass excels at chain handling. Its 180-degree chain wrap provides superior grip and control. The chain is also fed directly down into the locker, which can help prevent it from piling up and fouling.

However, this vertical drop requires a deep chain locker directly beneath the windlass to allow gravity to properly flake the chain. Without sufficient depth, the chain can form a "castle" and jam the mechanism.

A Note on Power Source

While horizontal and vertical describe the physical configuration, you will also see windlasses classified by their power source: manual, electric, or hydraulic.

This is a separate but equally important consideration. Both horizontal and vertical models are commonly available in manual and electric versions, while hydraulic systems are typically reserved for much larger vessels. The choice of power source depends on your boat's systems, your budget, and your desired convenience.

Making the Right Choice for Your Vessel

Your decision should be guided by the physical constraints of your boat and your operational priorities.

If your primary focus is simple installation and easy maintenance: A horizontal windlass is almost always the more straightforward choice.
If your primary focus is a clean deck aesthetic and minimal clutter: A vertical windlass is the ideal solution, provided you have the necessary space below deck.
If your primary focus is maximum chain security and preventing slippage under heavy load: The superior chain wrap of a vertical windlass gives it a distinct advantage.

Ultimately, understanding the design of your boat's foredeck and chain locker will be the deciding factor in selecting the right windlass.

Summary Table:

Feature	Horizontal Windlass	Vertical Windlass
Shaft Orientation	Parallel to the deck	Perpendicular to the deck
Deck Footprint	Larger, more prominent	Smaller, low-profile
Chain Wrap/Grip	~90 degrees	~180 degrees (superior grip)
Installation Complexity	Generally simpler	More complex (requires below-deck space)
Ideal For	Easy maintenance, simpler installation	Clean aesthetics, superior chain handling
