A large-tonnage non-standard winch is a specialized heavy-duty lifting and pulling device designed for handling exceptionally heavy loads in industrial and construction settings. Unlike standard winches, these are custom-engineered to meet specific project requirements, often involving unique load capacities, configurations, or operational conditions. They play a critical role in large-scale infrastructure projects, enabling the movement and positioning of massive structural components where conventional equipment would be insufficient. Their design prioritizes durability, precision control, and safety when handling multi-ton loads in challenging environments.
Key Points Explained:
-
Definition and Purpose
- A large-tonnage non-standard winch is a heavy-duty mechanical device used for:
- Vertical lifting of massive objects (e.g., bridge segments, industrial machinery)
- Horizontal pulling/pushing of loads (e.g., positioning steel beams in construction)
- Controlled dragging operations (e.g., moving pre-assembled structures)
- "Non-standard" indicates custom engineering to address unique project needs, such as:
- Exceptional load capacities (often exceeding 100 tons)
- Specialized drum configurations or cable/wire rope specifications
- Integration with other heavy-lift systems like gantries or cranes
- A large-tonnage non-standard winch is a heavy-duty mechanical device used for:
-
Primary Applications
- These winches are indispensable in:

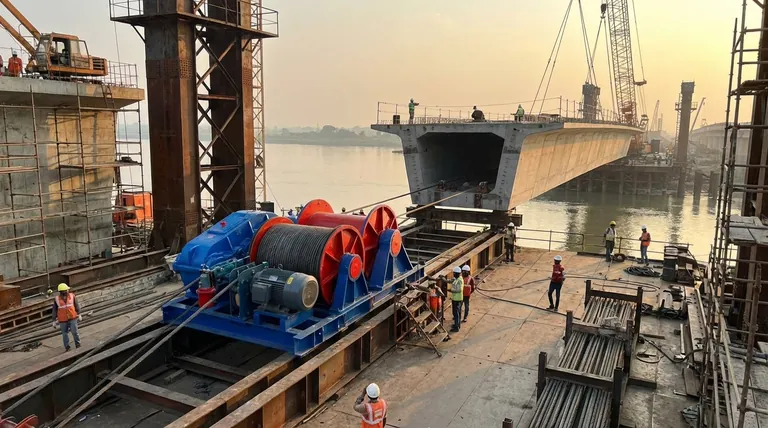

- Infrastructure Projects: Installing/dismantling bridge components, port cranes, or dam structures.
- Industrial Construction: Moving/reactor vessels in oil refineries or power plant turbines.
- Marine Engineering: Dockyard operations involving ship modules or offshore platform sections.
- Contrast with small winch systems, which handle lighter loads (<5 tons) in workshops or utility scenarios.
- These winches are indispensable in:
-
Key Design Features
- Robust Construction: High-grade steel frames and reinforced components to withstand dynamic loads.
-
Precision Control Systems: Often include:
- Variable-speed motors for smooth operation
- Fail-safe braking mechanisms to prevent accidental drops
- Load monitoring sensors for real-time weight feedback
- Modularity: Some designs allow attachment of multiple drums or auxiliary winches for complex rigging setups.
-
Operational Advantages
- Customization: Adaptable to site-specific challenges like limited space or harsh environments (e.g., explosive atmospheres).
- Efficiency: Reduces reliance on more expensive alternatives like mega-cranes for certain heavy-lift tasks.
- Safety: Engineered redundancy (dual braking systems, emergency stop protocols) minimizes risks during critical lifts.
-
Selection Considerations for Buyers
- Load Requirements: Assess maximum weight, lift height, and duty cycle (intermittent vs. continuous use).
- Environmental Factors: Corrosion-resistant coatings for marine use or explosion-proofing for chemical plants.
- Regulatory Compliance: Certifications like CE or ASME B30.7 for load-bearing components.
- After-Sales Support: Availability of spare parts and technical assistance for maintenance.
These winches exemplify how engineered solutions bridge the gap between standard equipment capabilities and the demanding realities of mega-projects. Their value lies not just in raw power, but in enabling feats of precision engineering that shape skylines and industries.
Summary Table:
| Feature | Description |
|---|---|
| Load Capacity | Custom-engineered for 100+ tons, surpassing standard winch capabilities. |
| Applications | Bridge construction, industrial plant assembly, marine engineering. |
| Key Design | Reinforced steel frames, precision control systems, modular configurations. |
| Safety & Compliance | Fail-safe brakes, load sensors, CE/ASME certifications. |
| Customization | Adapts to space constraints, harsh environments, and unique project demands. |
