At its core, the power mechanism of a concrete mixer is a coordinated system designed to convert engine power into mechanical work. It typically includes a diesel engine, a belt drive mechanism, a gear box, and a series of clutches to control the machine's different functions.
The central purpose of the power mechanism is not just to generate power, but to effectively transmit and distribute that power from a single engine to multiple, independent operations—namely, the mixing drum and the loading hopper.
The Core Components of the Power Mechanism
To understand how a concrete mixer operates, we must first break down its power system into its fundamental parts. Each component has a distinct role in taking raw energy and turning it into a productive task.
The Prime Mover: The Diesel Engine
The diesel engine is the heart of the entire operation. It serves as the prime mover, generating the initial rotational force required to run all other systems on the mixer.
The Transmission System: Belts and Gears
Raw engine power is useless until it's transferred. The belt drive mechanism acts as the primary transmission line, carrying power from the engine to other key components.
From the belt drive, power is often fed into a gear box. The gearbox modifies the speed and torque of the engine's output, providing the high-torque, low-speed rotation necessary for turning a heavy, aggregate-filled drum.
The Control System: Clutches
Clutches are essential for control, allowing the operator to engage or disengage specific functions without shutting down the engine.
The mixer uses a direction clutch for the upper hopper, which receives power via the belt drive. This allows the operator to control the movement and positioning of the loading system. Another lifting hopper clutch may connect directly to the engine to manage the lifting action.
How Power is Distributed to Key Functions
The genius of the power mechanism is its ability to route power from one engine to two distinct jobs: mixing and loading. This is achieved through a carefully designed series of connections.
Powering the Mixing Drum
The engine's power travels through the belt drive to the gear box. The gear box then drives the rotation of the mixing drum, ensuring a consistent and powerful mixing action that keeps all aggregates suspended.
Powering the Loading Hopper
Simultaneously, the belt drive also sends power to the hopper's direction clutch. By engaging this clutch, the operator can activate the mechanisms that lift and position the hopper to feed materials into the drum.
Operational Considerations
A mechanical system like this requires consistent oversight to function correctly. Its reliability is directly tied to the condition of its components.
Importance of Controller Checks
Before operation, all buttons, switches, and levers must be inspected. These controllers are the operator's interface with the clutches and gearbox. If they are not functioning correctly, the operator loses the ability to safely control the machine's powerful functions.
Wear and Tear on Transmission Parts
The belts and clutches are critical points of power transfer and are also subject to the most wear. Regular inspection and maintenance of these parts are essential to prevent unexpected downtime and ensure power is transmitted efficiently from the engine to the work.
Applying This to Your Work
Understanding this power path is crucial for both operation and troubleshooting. Your focus will determine which part of the system is most important to you.
- If your primary focus is operation: Recognize that the engine powers everything, but the clutches give you independent control over mixing and loading.
- If your primary focus is maintenance: Pay close attention to the belt drive and clutches, as these are the most common points of failure in the power transmission system.
- If your primary focus is troubleshooting: Always trace the path of power from the engine to the component that has stopped working to isolate the problem.
Ultimately, viewing the power mechanism as an interconnected system is the key to mastering the machine's operation and maintenance.
Summary Table:
| Component | Primary Function |
|---|---|
| Diesel Engine | Generates the initial rotational power for the entire system. |
| Belt Drive Mechanism | Transmits power from the engine to other components. |
| Gear Box | Modifies engine output to provide high-torque, low-speed rotation for the drum. |
| Clutches | Allow independent control of the mixing drum and loading hopper functions. |
Need a concrete mixer with a robust and reliable power mechanism?
GARLWAY specializes in manufacturing high-performance construction machinery, including durable concrete mixers, winches, and batching plants. Our machines are engineered for construction companies and contractors who demand efficiency and minimal downtime.
Let us help you select the right equipment to power your projects. Contact our experts today for a consultation and discover the GARLWAY difference in reliability and performance.

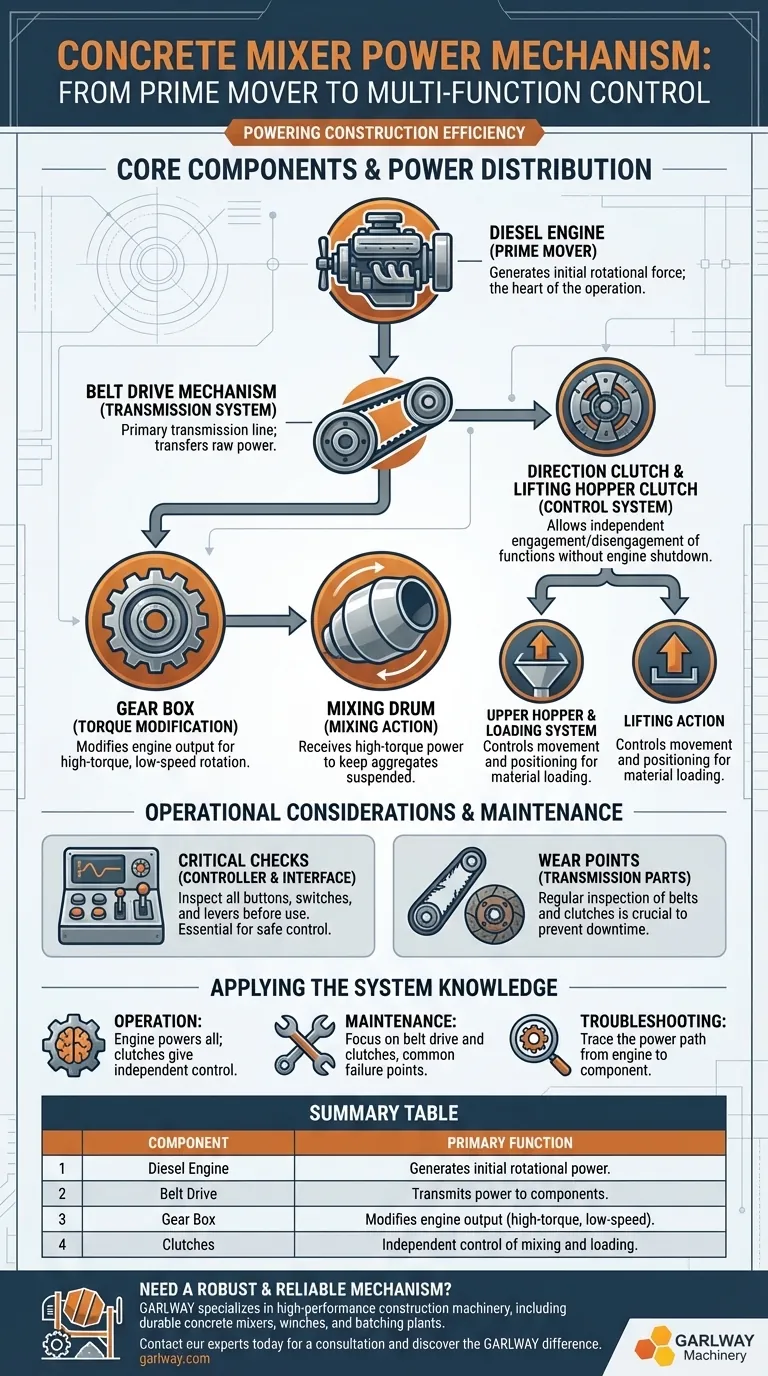

Visual Guide
