The mixing process in a cement mixer is a systematic sequence designed to achieve a uniform and consistent concrete mixture. It begins with preparing the materials, loading them in a specific order, blending through drum rotation, and finally discharging the mixture. Proper execution ensures optimal strength and workability of the concrete while preventing segregation or overloading. The process balances efficiency with precision, leveraging the mixer's components like the drum, blades, and motor to integrate cement, aggregates, and water effectively.
Key Points Explained:
-
Preparation and Material Loading
-
Order of Loading:
- Start with half the water to wet the drum and prevent material sticking.
- Add coarse aggregates (e.g., gravel) first to coat them with water, reducing dust and improving adhesion.
- Follow with cement and sand to create a smooth base blend.
- Gradual Water Addition: The remaining water is added incrementally to adjust consistency, avoiding excess that weakens the mix.
- Batch Control: Avoid overloading the drum; typical capacity is 60–80% of total volume to ensure thorough mixing.
-
Order of Loading:
-
Mixing Phase
-
Drum Rotation:
- The motor or engine rotates the drum at 15–20 RPM for even blending.
- Mixing blades or paddles lift and fold materials, ensuring homogeneity.
- Duration: Standard mixing time is 3–5 minutes, but varies based on mixer type (e.g., tilt drum vs. pan mixer).
- Consistency Check: The mix should be uniform in color/texture, with no dry pockets or clumps.
-
Drum Rotation:
-
Discharging the Mixture
- Timing: Unload promptly after reaching desired consistency to prevent setting.
- Method: Tilting the drum or using a chute directs the mix into containers or forms.
- Cleanup: Residual concrete should be rinsed immediately to avoid hardening in the drum.
-
Equipment Considerations
- Drum Design: Reversible drums optimize mixing and discharging.
- Power Source: Electric, hydraulic, or gasoline-powered motors dictate portability and torque.
- Safety: Secure lids during rotation and stabilize the mixer on level ground to prevent spills.
-
Common Pitfalls
- Overloading: Reduces mixing efficiency and strains the motor.
- Incorrect Water Ratio: Excess water weakens concrete; too little causes poor workability.
- Improper Sequencing: Adding all materials at once leads to uneven blending.
By following these steps, operators ensure durable, high-quality concrete while maximizing the cement mixer's lifespan and performance. The process mirrors industrial standards but adapts to small-scale projects, making it a cornerstone of construction workflows.

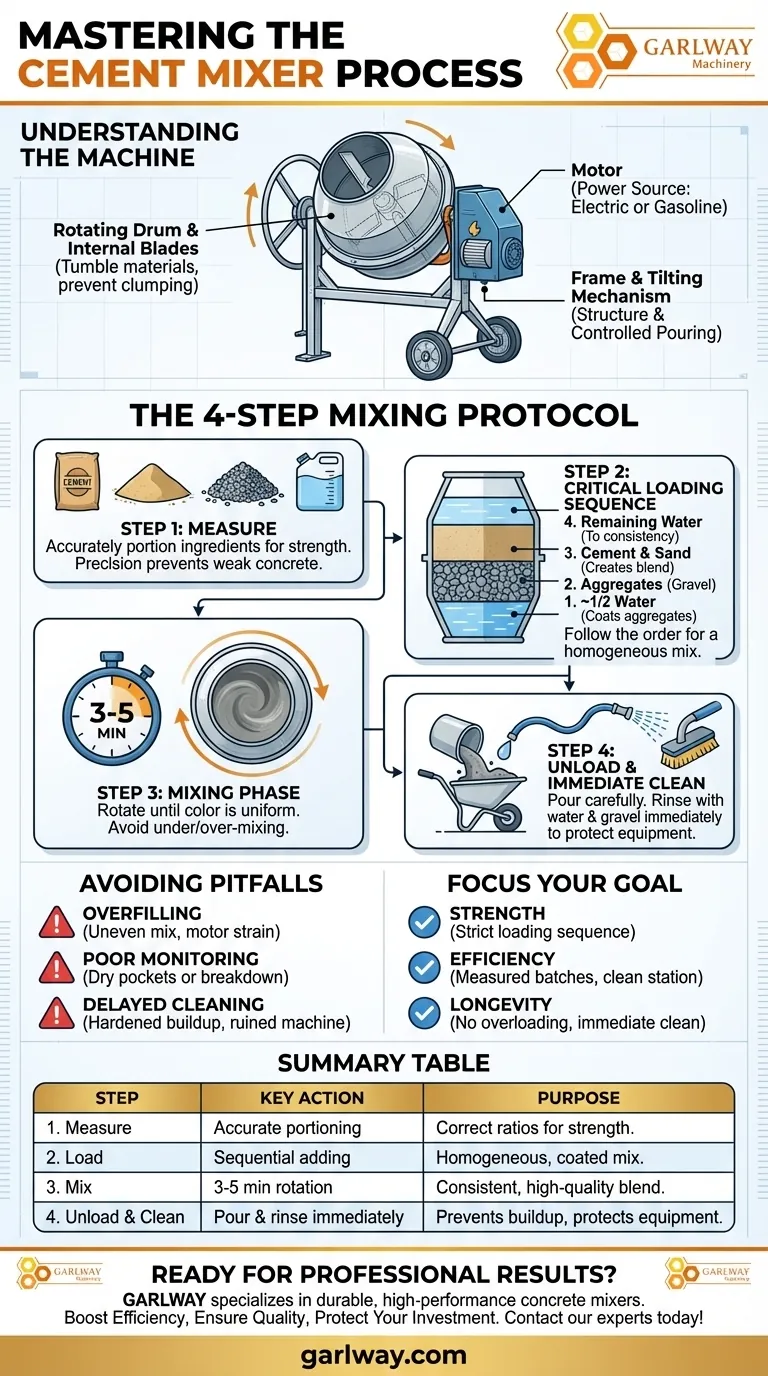

Summary Table:
| Step | Key Actions | Tips |
|---|---|---|
| Preparation | - Wet drum with half water first. | Prevents material sticking. |
| - Load coarse aggregates → cement → sand. | Improves adhesion and reduces dust. | |
| Mixing Phase | - Rotate drum at 15–20 RPM for 3–5 minutes. | Ensure uniform color/texture. |
| - Add remaining water incrementally. | Avoid excess water weakening the mix. | |
| Discharging | - Tilt drum or use chute for prompt unloading. | Prevents premature setting. |
| - Rinse drum immediately. | Avoids hardened residue. | |
| Equipment Tips | - Avoid overloading (60–80% capacity). | Maximizes efficiency and motor lifespan. |
