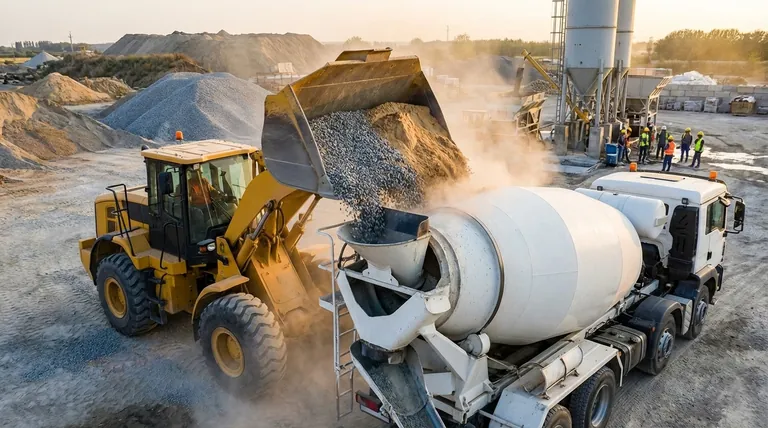

In a concrete mixer truck, aggregates and sand are typically loaded into the opening of the rotating drum using a loader bucket. This is done incrementally as part of a specific sequence, often after some or all of the cement has been added, to ensure a thorough and uniform blend before the addition of water.
The key to a high-quality concrete mix isn't just the ingredients, but the sequence in which they are loaded. A precise, step-by-step process is essential to prevent clumping and ensure the final product has the required consistency and strength.
The Standard Loading and Mixing Procedure
A successful concrete batch depends on a methodical process that begins before any materials enter the truck. Each step is designed to guarantee the final quality of the mix.
Step 1: Pre-Loading Preparation
Before loading, the truck must be properly prepared. This involves cleaning the drum to remove any hardened concrete or residue from previous batches, which could contaminate the new mix.
The truck must also be positioned on stable, level ground. This prevents any risk of tipping during the loading process, which involves heavy, shifting materials.
Step 2: The Critical Loading Sequence
While minor variations exist, the generally accepted professional sequence prioritizes proper coating of the aggregates with cement before introducing water.
The most common and effective order is:
- Introduction of Aggregates: Coarse aggregates and sand are loaded into the drum first.
- Introduction of Cement: The cement powder is added on top of the aggregates.
- Dry Mixing: The drum rotates to evenly coat every particle of sand and aggregate with cement powder. This dry mix is a critical step for uniformity.
- Addition of Water: Water is introduced via the truck's pump system.
- Final Mixing: The drum continues to rotate, using its internal spiral blades to thoroughly combine all ingredients into a homogeneous, workable concrete during transit to the job site.
Step 3: The Role of the Mixer Drum
The drum is more than just a container. Its internal spiral blades are engineered to lift and tumble the materials.
As the drum rotates, this action ensures that every component is continuously blended, preventing segregation and guaranteeing a consistent mix from the first pour to the last.
Common Pitfalls to Avoid
Mistakes during the loading phase directly impact the concrete's structural integrity. Understanding these common errors is crucial for quality control.
Ignoring the Sequence
Simply dumping all the ingredients in at once is the most common mistake. This leads to inefficient mixing, cement clumping, and weak spots in the final cured concrete.
Inaccurate Proportioning
Modern mixers often have built-in weighing systems. Bypassing this for visual estimation ("eyeballing") is a recipe for a failed batch. The precise ratio of cement, aggregate, and water is what gives concrete its specified strength.
Failing to Clean the Drum
Residue from a previous mix can alter the chemical composition and water-to-cement ratio of the new batch. This seemingly small oversight can compromise the performance of the concrete once it's poured.
Making the Right Choice for Your Goal
Achieving a perfect concrete mix is about discipline and process. Your focus will determine which step is most critical.
- If your primary focus is maximum strength and consistency: Adhere strictly to the "aggregates first, then cement, then water" loading sequence to ensure perfect coating.
- If your primary focus is operational speed: Never skip pre-loading checks; cleaning the drum and positioning the truck correctly prevents costly errors and delays down the line.
- If your primary focus is meeting engineering specifications: Rely on the loader's built-in weighing system for every ingredient to guarantee the proportions are exact.
Ultimately, a reliable and predictable concrete mix is a direct result of a disciplined and precise loading procedure.
Summary Table:
| Step | Key Action | Purpose |
|---|---|---|
| 1. Preparation | Clean drum, position truck on level ground. | Prevents contamination and ensures safety. |
| 2. Loading Sequence | Add aggregates & sand, then cement, then water. | Ensures cement coats aggregates evenly before mixing. |
| 3. Mixing | Rotate drum to use internal blades for blending. | Creates a homogeneous, high-quality concrete mix. |
| 4. Avoid Pitfalls | Follow sequence, use weighing systems, clean drum. | Prevents weak spots and ensures batch consistency. |
Achieve a perfect mix every time with GARLWAY.
For construction companies and contractors, the quality of your concrete directly impacts the integrity of your projects. GARLWAY specializes in high-performance construction machinery, including durable concrete mixers and concrete batching plants, designed to streamline your batching process and deliver consistent, reliable results.
Let our equipment and expertise help you master the loading sequence and eliminate common mixing errors. Contact GARLWAY today to discuss your project needs and find the right solution for your operation.

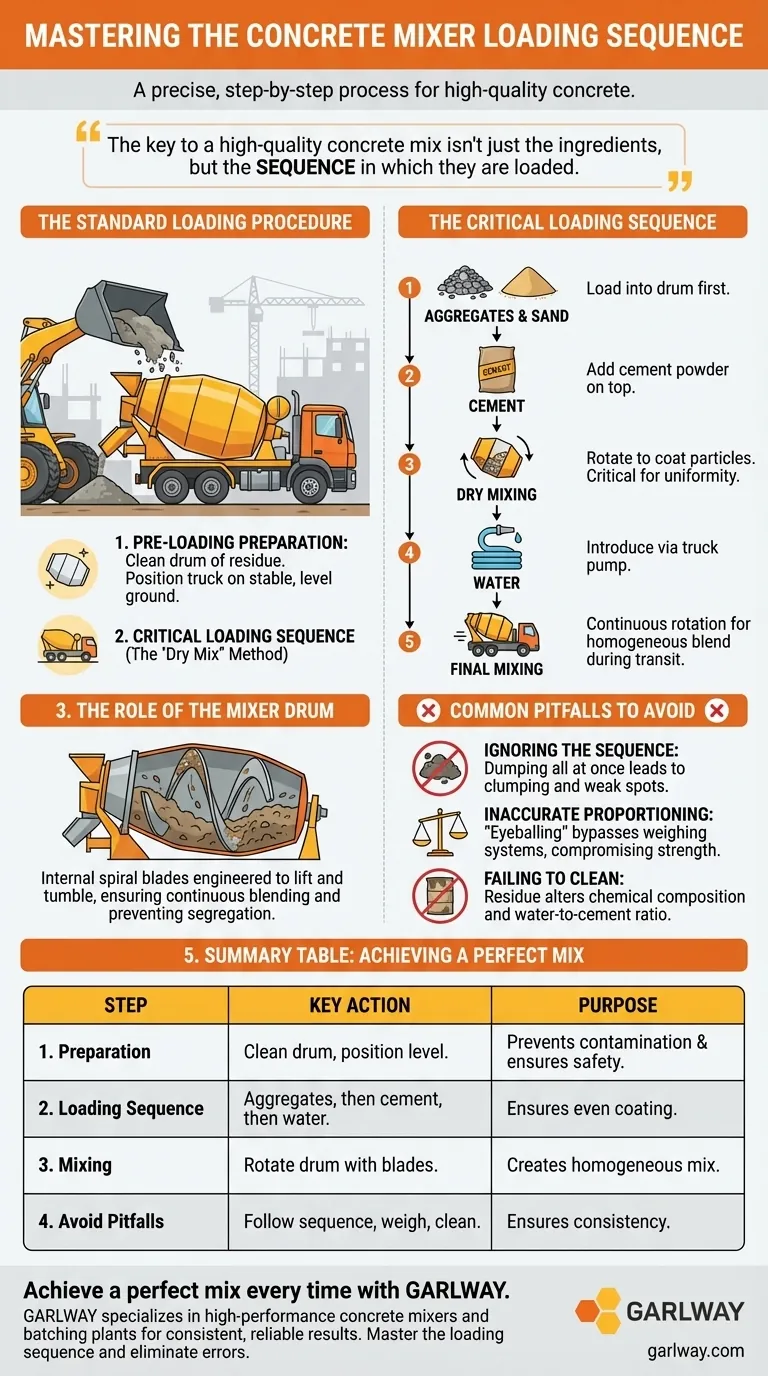

Visual Guide
