For wide construction sites, the clear and preferred choice is a low-incline flat belt conveyor. This design is favored for its simplicity, reliability, and cost-effectiveness when moving bulk materials like aggregates across large, open areas where space is not a primary constraint.

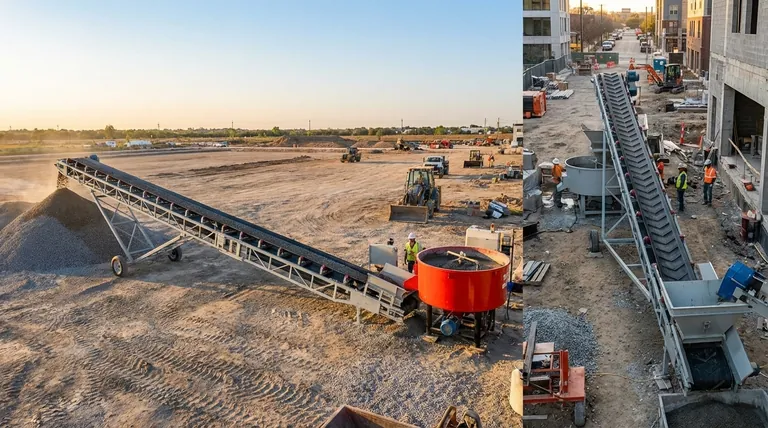

The decision between conveyor types is a fundamental trade-off between mechanical simplicity and spatial efficiency. Wide sites can leverage the simple, low-cost flat belt, while confined spaces demand the more complex, high-incline sidewall conveyor.
The Standard Choice: The Flat Belt Conveyor
A flat belt conveyor is the workhorse of material handling on sites with sufficient room. Its design prioritizes straightforward, reliable operation over a compact footprint.
How It Works
The system is fundamentally simple: a continuous flat belt loops over a series of rollers. Material, such as sand or gravel, is placed on the belt and carried along by friction. The incline is kept low to ensure the material does not slide or roll back down.
Why It Excels on Wide Sites
Wide construction sites have the luxury of space. A low incline means the conveyor must be much longer to achieve a certain vertical height, a factor that is easily accommodated in an open environment. This simple design results in fewer moving parts, leading to higher reliability and lower maintenance costs.
The Alternative for Tight Spaces: The Sidewall Conveyor
When site space is limited, the operational footprint becomes the most critical factor, necessitating a different approach to conveyor design.
Solving the Space Problem
A high-incline sidewall belt conveyor is engineered specifically to transport materials upwards at very steep angles. This dramatically reduces the horizontal length required to reach a specific elevation, making it ideal for confined or congested sites.
The Role of Sidewalls and Cleats
This conveyor's effectiveness comes from two key features. Corrugated sidewalls on the edges of the belt contain the material and prevent it from spilling. Cross-body cleats (or partitions) create pockets that actively lift the material, overcoming the pull of gravity at steep angles.
Reaching Steep Angles
Thanks to this design, sidewall conveyors can operate at inclines of 40° to 50°. With additional structural support and specialized belts, they can even achieve a vertical lift of 90°, something impossible for a standard flat belt.
Understanding the Trade-offs
Choosing the right conveyor requires balancing cost, complexity, and the physical constraints of your worksite.
Simplicity vs. Complexity
The flat belt conveyor is mechanically simple, which translates directly to a lower initial purchase price and easier, less frequent maintenance. The sidewall conveyor, with its specialized belt, cleats, and support structure, is inherently more complex and costly.
Footprint vs. Length
This is the core trade-off. A sidewall conveyor offers a remarkably small footprint at the cost of mechanical complexity. A flat belt conveyor is simple and cheap but requires a very long horizontal run to gain elevation, making it suitable only for wide-open sites.
Making the Right Choice for Your Site
Your decision should be dictated by the primary constraints of your project.
- If your primary focus is cost-effectiveness and you have ample space: A low-incline flat belt conveyor is the most reliable and economical solution for moving aggregates.
- If your primary focus is maximizing a limited footprint: A high-incline sidewall belt conveyor is the only practical choice for achieving significant vertical lift in a confined area.
Ultimately, aligning your conveyor choice with your site's spatial constraints ensures the most efficient and effective material handling strategy.
Summary Table:
| Feature | Low-Incline Flat Belt Conveyor | High-Incline Sidewall Conveyor |
|---|---|---|
| Best For | Wide, open sites with ample space | Confined or congested sites |
| Typical Incline | Low angle (e.g., 15°-20°) | Steep angle (40°-90°) |
| Key Advantage | Simplicity, low cost, easy maintenance | Compact footprint, high vertical lift |
| Complexity | Low mechanical complexity | Higher complexity with cleats and sidewalls |
