The primary specification for the discharge ring of a self-falling mixer is that its radial runout must not exceed 1% of the inlet diameter. This precise tolerance is not arbitrary; it is a critical standard that directly impacts the mixer's operational stability, efficiency, and longevity.
The rule of thumb for a mixer's discharge ring is simple: its "wobble" or radial runout must be kept below 1% of the inlet opening's diameter. Exceeding this limit leads to vibration, premature wear, and inconsistent performance.
The Role of the Discharge Ring
What is a Self-Falling Mixer?
A self-falling mixer, often called a drum mixer or gravity mixer, works by lifting materials on fins or paddles inside a rotating drum. The materials then tumble back down, mixing through the force of gravity.
The Function of the Discharge Ring
The discharge ring is a critical component located at the mixer's outlet. It serves as a precise, circular track that guides the flow of mixed material out of the drum, often interfacing with seals and chutes.
Decoding the "1% Radial Runout" Specification
What is Radial Runout?
Radial runout is a measure of how much a circular part, like the discharge ring, deviates from a perfect circle as it rotates. In simpler terms, it's a measurement of its "wobble."
Imagine a slightly warped bicycle wheel. As it spins, the rim moves in and out. The total distance of that in-and-out movement is its radial runout.
Why the 1% Rule is Critical
This tolerance ensures the entire discharge assembly operates smoothly and without excessive stress. A tight tolerance maintains the integrity of the system's alignment.
When the runout is kept below 1% of the inlet diameter, the mixer benefits from stable operation, predictable material flow, and minimal wear on associated parts.
Consequences of Non-Compliance
Increased Vibration and Noise
A discharge ring that wobbles more than the allowed 1% creates imbalance in the rotating system. This directly translates into excess vibration and operational noise.
Premature Wear on Components
This vibration puts significant stress on bearings, seals, and the drive system. Seals can fail, leading to leaks and contamination, while bearings wear out faster, requiring costly downtime and repairs.
Inconsistent Material Discharge
Excessive runout can cause the gap between the ring and its mating chute or seal to vary. This can lead to an uneven or pulsating flow of material, affecting the consistency of the downstream process.
Making the Right Choice for Your Goal
To apply this knowledge, focus on how it impacts your specific responsibilities.
- If your primary focus is procurement or engineering: Always verify that the manufacturer's specifications for the discharge ring meet or exceed the "1% of inlet diameter" radial runout standard.
- If your primary focus is maintenance: Make checking the discharge ring's runout a part of your regular preventative maintenance schedule, especially if you notice increasing vibration or seal failures.
- If your primary focus is troubleshooting: When diagnosing issues like leaks or excessive vibration, consider a deformed or improperly installed discharge ring as a potential root cause.
Ultimately, the precision of a single component is fundamental to the reliability of the entire mixing operation.
Summary Table:
| Specification | Critical Value | Impact of Non-Compliance |
|---|---|---|
| Radial Runout | ≤ 1% of inlet diameter | Increased vibration, premature wear, inconsistent material flow |
| Functional Role | Precise guide for material discharge | Ensures stable operation and protects seals and bearings |
Ensure your mixing operations run smoothly and efficiently. The precision of components like the discharge ring is fundamental to the reliability and longevity of your equipment. GARLWAY specializes in high-quality construction machinery, including durable concrete mixers and batching plants designed for construction companies and contractors globally. Our equipment is engineered to meet rigorous specifications, minimizing downtime and maximizing productivity. Contact GARLWAY today to discuss your project needs and discover how our reliable solutions can benefit your business.

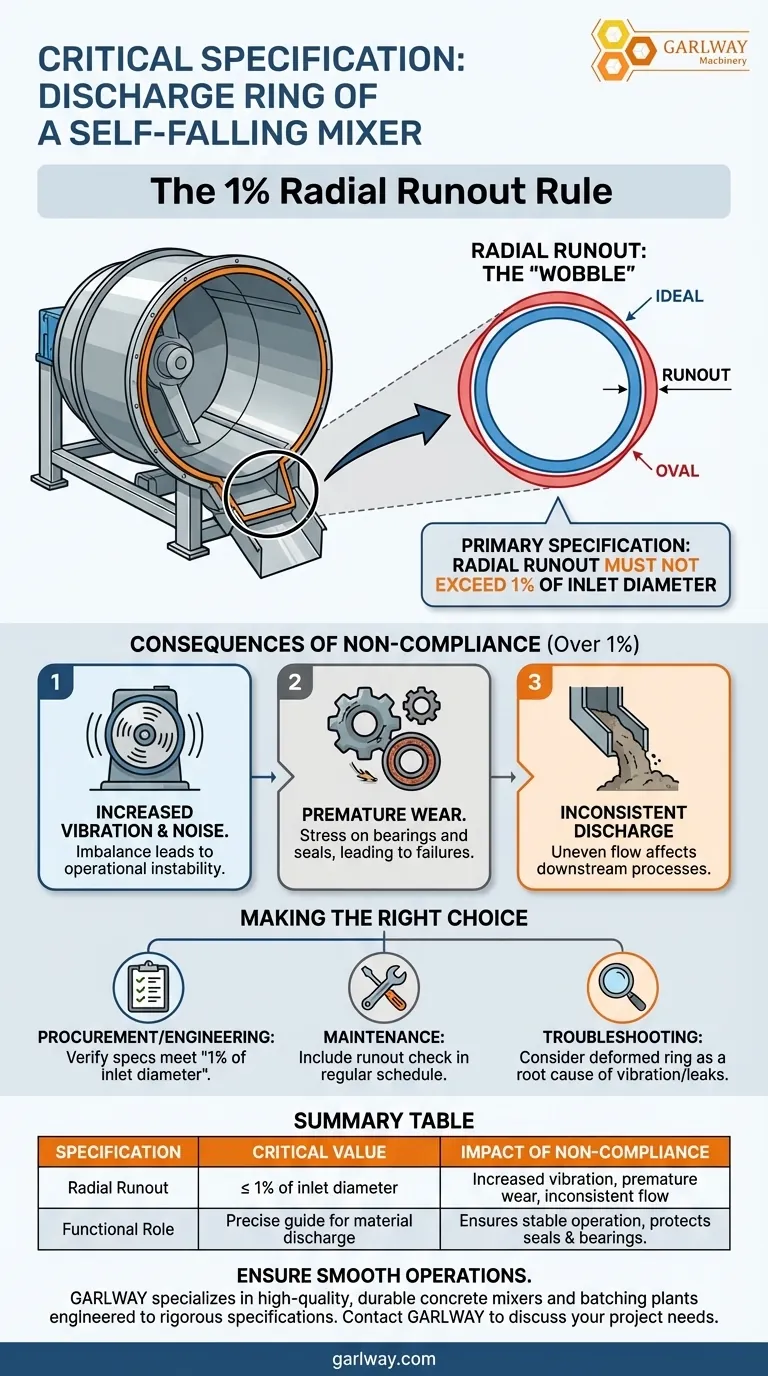

Visual Guide
