How Does The Hydraulic System Achieve 'Power Out' Functionality? Ensuring Safe, Controlled Load Management

In a hydraulic system, 'power out' functionality is achieved by using specialized valving to reverse fluid flow and actively manage the load. Instead of simply releasing pressure and letting gravity or tension take over, the system uses its own power to drive a component outwards or downwards. This ensures precise, controlled movement, especially when handling heavy or "overrunning" loads like a winch cable under tension.

The core principle behind 'power out' is not just reversing direction, but creating controlled back pressure. This hydraulic resistance prevents the load from free-falling or spinning the motor uncontrollably, turning a potentially dangerous release into a safe, managed operation.

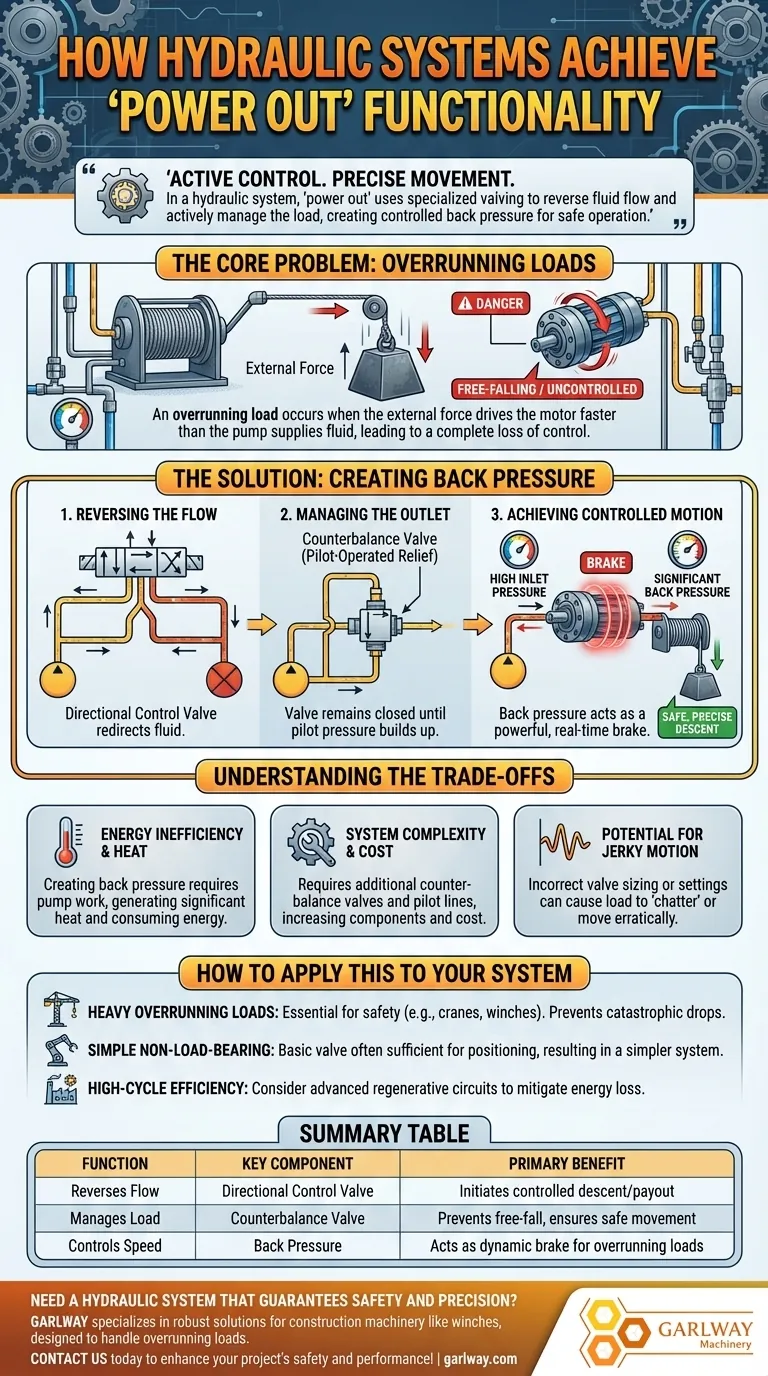

How does the hydraulic system achieve 'power out' functionality? Ensuring Safe, Controlled Load Management

The Core Problem: Overrunning Loads

To understand 'power out', you must first understand the problem it solves. The primary challenge is managing a load that wants to move on its own.

How Normal 'Power In' Works

In a typical 'power in' operation, like lifting a weight, the hydraulic pump sends high-pressure fluid to the motor's inlet. This fluid performs work, turning the motor to lift the load. The low-pressure fluid on the outlet side simply returns to the tank.

The Danger of an Uncontrolled Release

If you were to lower that same weight by simply opening a valve to the tank, the load's force (gravity) would pull on the motor. This would cause the motor to spin freely and potentially uncontrollably, creating a dangerous situation. This condition is known as overrun.

Defining "Overrun"

An overrunning load occurs when the external force (like gravity or tension on a winch cable) tries to drive the hydraulic motor faster than the pump is supplying it with fluid. This leads to a complete loss of hydraulic control.

The Hydraulic Solution: Creating Back Pressure

The 'power out' function is an elegant solution that uses hydraulic pressure to act as a dynamic brake against the overrunning load.

Step 1: Reversing the Flow

The process starts with a directional control valve. This valve switches the hydraulic lines, so the high-pressure fluid from the pump is now directed to what was previously the motor's outlet port. This initiates the reverse motion.

Step 2: Managing the Outlet with a Counterbalance Valve

This is the critical step. Instead of letting the fluid on the other side flow freely back to the tank, it is routed through a counterbalance valve.

A counterbalance valve is a special type of relief valve. It remains closed, blocking the fluid's escape path, until the pump pressure on the inlet side builds up and sends a pilot signal to open it.

Step 3: Achieving Controlled Motion

This setup ensures the motor cannot move until the system is actively pressurized. By restricting the escaping fluid, the counterbalance valve creates significant back pressure on the outlet side of the motor.

This back pressure acts as a powerful, real-time brake, resisting the force of the overrunning load. The motor is effectively caught between the pump's forward pressure and the valve's back pressure, resulting in perfectly smooth and controlled descent.

Understanding the Trade-offs

While essential for safety, implementing a 'power out' circuit involves compromises that are important to recognize.

Energy Inefficiency and Heat

Creating back pressure is fundamentally inefficient. The pump must work to overcome this self-imposed resistance, generating significant heat in the hydraulic fluid. This consumes energy even while lowering a load.

System Complexity and Cost

Proper 'power out' functionality requires additional components, namely counterbalance valves and the pilot lines that control them. This increases the cost, complexity, and potential failure points of the hydraulic circuit.

Potential for Jerky Motion

If a counterbalance valve is not sized correctly for the application or if its pressure settings are wrong, it can cause the load to "chatter" or move erratically. Smooth operation depends on careful system design and tuning.

How to Apply This to Your System

Choosing the right approach depends entirely on the forces your system needs to manage.

If your primary focus is safety with heavy, overrunning loads (cranes, winches, lifts): A 'power out' circuit with properly integrated counterbalance valves is absolutely essential to prevent catastrophic load drops.
If your primary focus is simple, non-load-bearing motion (swinging a light arm, positioning an unloaded component): A basic directional valve without overrun protection is often sufficient, resulting in a simpler and less expensive system.
If your primary focus is high-cycle efficiency (industrial automation, repetitive tasks): You may need to investigate more advanced load-sensing or regenerative circuits to mitigate the energy loss and heat generated by standard 'power out' designs.

Ultimately, 'power out' transforms a hydraulic system from a simple actuator into a tool of precise and safe load management.

Summary Table:

Function	Key Component	Primary Benefit
Reverses Flow	Directional Control Valve	Initiates controlled descent or payout
Manages Load	Counterbalance Valve	Prevents free-fall; ensures safe, precise movement
Controls Speed	Back Pressure	Acts as a dynamic brake for overrunning loads
